| Place of Origin: | Dongguan China |
|---|---|
| Brand Name: | LionRock |
| Minimum Order Quantity: | negotiate |
| Price: | negotiate |
| Packaging Details: | export packing |
| Delivery Time: | negotiate |
| Payment Terms: | TT |
| Color: | Black | Dimension: | 600mm X 600mm X 2000mm |
|---|---|---|---|
| Weight: | 250kg | Voltage: | -48VDC |
| Capacity: | 3000A Max | Surge Protection: | 15kA |
| High Light: | 3000A Energy Cabinet,2000mm Energy Cabinet,600mm Energy Storage Cabinet |
||
Excellent Battery Health Management Telecom Energy Solutions
LionRock Telecom Energy Solutions offer simple, efficient and reliable full range of power supply equipment at various output capacities to meet all applications. Telecom Energy products include mbedded power supply, photovoltaic system, battery system, AC and DC Rectification & power distribution system, control management system and data monitoring system.
Large Capacity Telecom Indoor Cabinet upto 6000A

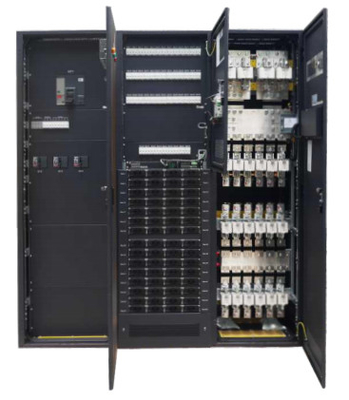

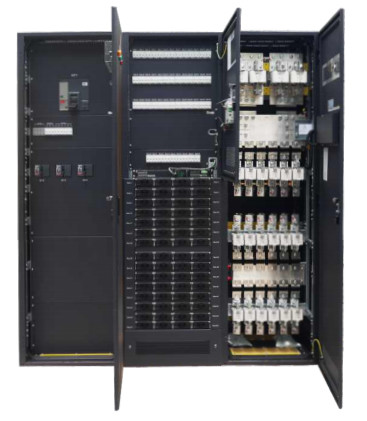

EC1030R30 is LionRock’s new generation telecom power system for central equipment room with digitalization, multiple racks and large capacity. The system is of great power density, excellent performance, easy maintenance and strong expandability. Single cabinet output is 3000A. It supports 2rectifier cabinets to operate in parallel so that the max output can reach 6000A.
Features
- Efficient and energy-saving design
- Digital design, stable performance
- Strong capacity expandability
- Excellent battery health management
Scenarios
- Core equipment room
- Large aggregation site
- Data center
General Specification
| System | Dimension (W x D x H) | 600mm x 600mm x 2000mm |
| Weight | 250kg | |
| Rectifier | 2-60 | |
| Input | AC Input | 200-277/346-480VAC, Three phase; 50/60Hz, 600A max |
| Surge Protection | 15kA | |
| Output | Voltage | -48VDC |
| Capacity | 3000A max | |
| DC Distribution EC1010DD (Optional) |
Dimension (W x D x H) | 600mm x 600mm x 2000mm |
| Battery Distribution | 4 x 1000A Fuse | |
| Output Distribution | 18 x 630A Fuse | |
| Weight | 180kg | |
| Surge Protection | 15kA | |
| AC Distribution EC1010AD (Optional) |
Dimension ( W x D x H ) | 600mm x 600mm x 2000mm |
| Input | 1000A MCCB | |
| Output Distribution | 3 x 250A MCCB | |
| Weight | 85kg | |
| Surge Protection | 40kA |
