Telecom Black Energy Cabinet Racks IP20 Protection 19 Inch Space LionRock ODM

Basic Information
Place of Origin: Dongguan China
Brand Name: LionRock
Model Number: EC1010R4
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: export packing
Delivery Time: negotiate
Payment Terms: TT
Detail Information
Color: Black Dimension (W X D X H): 600 Mm X 600 Mm X 2000 Mm
Weight: 56 Kg Inner Rack & Space: 34 U, 19-inch Rack
Cooling Mode: Natural Heat Radiation Protection Level: IP20 (EN 60529)
High Light:

Energy Cabinet IP20


Energy Cabinet LionRock


ODM Telecom Racks Cabinets

Product Description

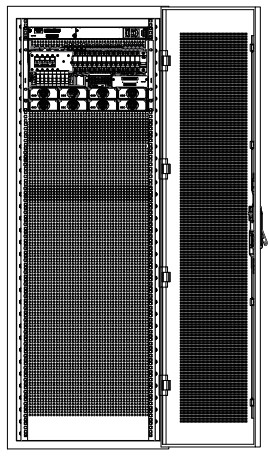

Compact Design Telecom Power Cabinet



The EC1000 series telecom power indoor cabinet is new platform generation designed to fit customer needs, configuration flexibility
and supports variety of applications. The equipment cabin reserves 19-inch rack space for other equipments. The cabinet is well suited
for power, batteries and telecom equipment.



- Small size, easy deployment
- Compact design for installation of equipment
- Intelligent battery management function helps to prolong battery lifespan
- Easy installation & maintenance by front door design
- Wide operating DC input range
- Full galvanic isolation
- Advanced max power point tracking routines
- Support CAN communication
- Open protocol of maintenance interface
- Anti-theft design



- Indoor
- Solar / diesel / grid hybrid system


General Specification

System Dimension (W x D x H) 600 mm x 600 mm x 2000 mm
Weight 56 kg (without rectifier modules and battery)
Installation Mode Indoor cement floor installation
Cabling Mode From the top
Maintenance Mode From the front
Cabinet Material Hull, inside frame, & base: steel
Cabinet Color Black: RAL 9004
Cable Entry Detail Cable entry from top of cabinet
Input AC Input 200-277/346-480VAC, Three phase; 50/60Hz,35A max
DC Input -40V ~ -60VDC; max 200A
Output Voltage -48VDC
Capacity 400A max
Output Distribution LLVD 63A×3, 32A×2, 16A×1
BLVD 80A×2, 32A×2
Equipment Cabin Inner Rack & Space 34 U, 19-inch rack
Protection Level IP20 (EN 60529)
Cooling Mode Natural heat radiation
Environment Operating Temperature -10 ºC to +45 ºC
Storage Temperature -40 ºC to +70 ºC
Operating Relative Humidity 5% to 95% (no condensation)
Altitude 0 to 4000 m (1 ºC per 200 m temperature derating from 2000 to
4000 m)

Remark: MPPT: Maximum Power Point Tracking; HFSM: High Frequency Switch Module
