| Place of Origin: | Dongguan China |
|---|---|
| Brand Name: | LionRock |
| Model Number: | EC1010R6 |
| Minimum Order Quantity: | negotiate |
| Price: | negotiate |
| Packaging Details: | export packing |
| Delivery Time: | negotiate |
| Payment Terms: | TT |
| Color: | Black | Dimension (W X D X H): | 600 Mm X 600 Mm X 2000 Mm |
|---|---|---|---|
| Weight: | 67 Kg | Inner Rack & Space: | 34 U, 19-inch Rack |
| Protection Level: | IP20 (EN 60529) | Cooling Mode: | Natural Heat Radiation |
| High Light: | Anti Theft Energy Cabinet,48Volt Energy Cabinet,4000m Outdoor Telecom Cabinet |
||

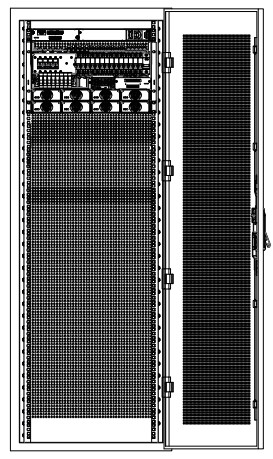

Anti-theft Design Telecom Power Cabinet
Introduction
The EC1000 series telecom power indoor cabinet is new platform generation designed to fit customer needs, configuration flexibility and
supports variety of applications. The equipment cabin reserves 19-inch rack space for other equipments. The cabinet is well suited for power,
batteries and telecom equipment.
Features
- Small size, easy deployment
- Compact design for installation of equipment
- Intelligent battery management function helps to prolong battery lifespan
- Easy installation & maintenance by front door design
- Wide operating DC input range
- Full galvanic isolation
- Advanced max power point tracking routines
- Support CAN communication
- Open protocol of maintenance interface
- Anti-theft design
Scenarios
- Indoor
- Solar / diesel / grid hybrid system
General Specification
| System | Dimension (W x D x H) | 600 mm x 600 mm x 2000 mm |
| Weight | 67 kg (without rectifier modules and battery) | |
| Installation Mode | Indoor cement floor installation | |
| Cabling Mode | From the top | |
| Maintenance Mode | From the front | |
| Cabinet Material | Hull, inside frame, & base: steel | |
| Cabinet Color | Black: RAL 9004 | |
| Cable Entry Detail | Cable entry from top of cabinet | |
| Input | AC Input | 200-277/346-480VAC, Three phase; 50/60Hz,35A max |
| DC Input | -40V ~ -60VDC; max 200A | |
| Output | Voltage | -48VDC |
| Capacity | 600A max | |
| Output Distribution | LLVD | 63A×3, 32A×2, 16A×1 |
| BLVD | 80A×2, 32A×2 | |
| Equipment Cabin | Inner Rack & Space | 34 U, 19-inch rack |
| Protection Level | IP20 (EN 60529) | |
| Cooling Mode | Natural heat radiation | |
| Environment | Operating Temperature | -10 ºC to +45 ºC |
| Storage Temperature | -40 ºC to +70 ºC | |
| Operating Relative Humidity | 5% to 95% (no condensation) | |
| Altitude | 0 to 4000 m (1 ºC per 200 m temperature derating from 2000 to 4000 m) |
Remark: MPPT: Maximum Power Point Tracking; HFSM: High Frequency Switch Module
