| Place of Origin: | Dongguan China |
|---|---|
| Brand Name: | LionRock |
| Certification: | UN38.8 |
| Model Number: | LF48150N1 |
| Minimum Order Quantity: | negotiate |
| Price: | negotiate |
| Packaging Details: | export packing |
| Delivery Time: | negotiate |
| Payment Terms: | TT |
| Cathode Material: | LiFePO4 | Nominal Voltage: | 48Vdc |
|---|---|---|---|
| Nominal Charging Voltage: | 54Vdc | Energy: | 7200Wh |
| Dimension: | 465.9mm X 480mm X 222mm (excluding Mounting Ear) | Weight: | About 65kg±1kg |
| High Light: | 7200Wh Li Fe Battery,3500Cycle Li Fe Battery,222mm Li Fe PO4 Battery |
||

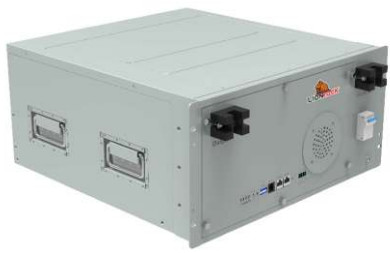

Long Lifetime Li Fe Battery
Introduction
LF48150N1 standard backup battery is based on Fe battery. It has been designed to provide power back-up for telecom equipment. It has excellent safety, high energy density, long lifetime, very nice temperature per formance. It is green power newly of excellent safety and high reliability, which to use for large basic station, outdoor cupboard and wind-solar hybrid system.
Features
- Support parallel connection for using with Monitor
- Wide operating temperature
- Build-in battery control for efficient operation
- Less weight for pole mounted sites
- Other functions (optional): Anti Thief / Dry Contact
Product Certificates
- ISO9001
- ISO14001
- CE
- UN38.3
General Specification
| Performance Parameter | Product Model | LF48150N1 |
| Cathode Material | LiFePO4 | |
| Nominal Voltage | 48Vdc | |
| Nominal Charging Voltage | 54Vdc | |
| Rated Capacity | 150Ah (0.2C constant current discharging, 40V cut off) | |
| Energy | 7200Wh | |
| Max Charge / Discharging Current | 100A | |
| Life Cycle Character | ≥3500 cycle (25ºC, 0.2C constant current discharge to 80%DOD, then go for next cycle) | |
| Dimension (W x D x H) | 465.9mm x 480mm x 222mm (excluding mounting ear) | |
| Weight | About 65kg±1kg | |
| Charge Life | ≥12 year | |
| Certification | UN38.8 | |
| Installation Method | Rack mounted / Wall mounted | |
| Communication Interface | RS232/RS485 | |
| Indicator State | ALM / RUN / SOC | |
| Parallel Communication | Maximum support for 8 sets of parallel | |
| Terminal Stud | M8, torque 10 N·m | |
| Alarm and Protection | Over voltage, under voltage, short circuit, overload, over current, over temperature, low temperature protection |
Operating Conditions
| Operating Temperature | Charging: 0ºC ~ 60ºC / Discharging: -20ºC ~ 60ºC |
| Storage Temperature | -20ºC ~ 60ºC |
| Operating Relative Humidity | 5% ~ 95% |
| Altitude | ≤4000m |
