Anti Theft Outdoor Telecommunication Cabinets 450kg 200A 48VDC

Basic Information
Place of Origin: Dongguan China
Brand Name: LionRock
Model Number: EC6025R2
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: export packing
Delivery Time: negotiate
Payment Terms: TT
Detail Information
Color: Grey Dimension (W X D X H): 800mm X 1200mm X 2000mm
Weight: 450kg Spare Space: 16U, 19-inch Rack
Protection Level: IP55 Noise: ≤65dBA@1.5m
High Light:

200A Outdoor Telecommunication Cabinets


48V Outdoor Telecommunication Cabinets

Product Description

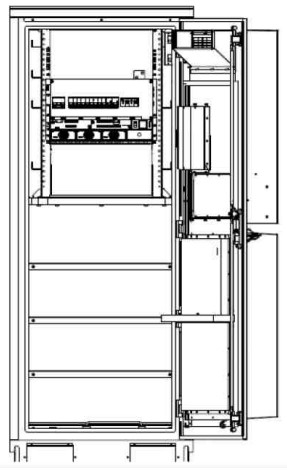

Anti-theft Design Telecom Power Cabinet


The EC6000 series telecom power outdoor cabinet with configuration flexibility is a new platform designed to meet customer needs and supports a variety of applications. It is well suited for power, batteries and telecom equipment.



- Small size, easy deployment
- Compact design for installation of equipment
- Intelligent battery management function helps to prolong battery lifespan
- Easy installation & maintenance by front door design
- Wide operating DC input range
- Full galvanic isolation
- Advanced max power point tracking routines
- Support CAN communication
- Open protocol of maintenance interface
- Anti-theft design



- Outdoor
- Solar / diesel / grid hybrid system


General Specification

System Dimension (W x D x H) 800mm x 1200mm x 2000mm
Weight 450kg (Excluding battery)
Installation Mode Ground-mounted
Maintenance Mode From the front and back
Cable Routing From the bottom
Cabinet Color Light grey: RAL 7035
Input AC Input 200-277/346-480VAC, Three phase; 50/60Hz, 35A max
DC Input -40V ~ -60VDC; max 200A
Output Voltage -48VDC
Capacity 200A max
Output Distribution BLVD 80Ax2, 32Ax2
LLVD 63Ax3, 32Ax2, 16Ax1
Space Spare Space 16U, 19-inch rack
Battery Space Max 52U, 19-inch rack


Cooling System

Equipment Cabin 150W/K cooling capacity
Battery Cabin 1000W DC air conditioner


Optional Accessories

Lighting LED
Sensor Smoke, water , door switch, temperature & humidity etc.


Operating Conditions

Operating Temperature -10ºC ~ 45ºC (Including solar radiation)
Storage Temperature -40ºC ~ 70ºC
Operating Relative Humidity 5% ~ 95%
Altitude 0 ~ 2000m (1ºC per 200m temperature derating from 2000 - 4000m)
Protection Level IP55
Noise ≤65dBA@1.5m
