| Place of Origin: | Dongguan China |
|---|---|
| Brand Name: | LionRock |
| Model Number: | EC6013B |
| Minimum Order Quantity: | negotiate |
| Price: | negotiate |
| Packaging Details: | export packing |
| Delivery Time: | negotiate |
| Payment Terms: | TT |
| Color: | Grey | Dimension (W X D X H): | 800mm X 1200mm X 2200mm |
|---|---|---|---|
| Weight: | 256kg | Spare Space: | 2U, 19-inch Rack |
| Protection Level: | IP55 | Noise: | ≤65dBA@1.5m |
| High Light: | IP55 Telecom Cabinet Outdoor,2U Telecom Cabinet Outdoor,19Inch Energy Storage Cabinet |
||

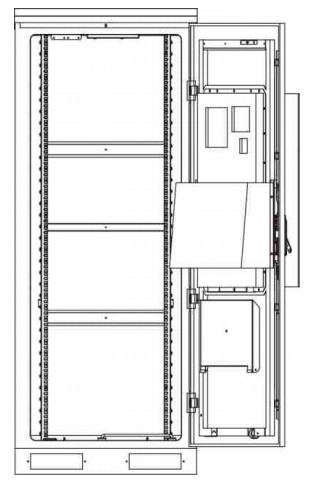

Easy Installation Telecom Power Cabinet
Introduction
The EC6000 series telecom power outdoor cabinet with configuration flexibility is a new platform designed to meet customer needs and supports a variety of applications. It is well suited for power, batteries and telecom equipment.
Features
- Small size, easy deployment
- Compact design for installation of equipment
- Intelligent battery management function helps to prolong battery lifespan
- Easy installation & maintenance by front door design
- Wide operating DC input range
- Full galvanic isolation
- Advanced max power point tracking routines
- Support CAN communication
- Open protocol of maintenance interface
- Anti-theft design
Scenarios
- Outdoor
- Solar / diesel / grid hybrid system
General Specification
| System | Dimension (W x D x H) | 800mm x 1200mm x 2200mm (including base 800mm x 1000mm x 100mm) |
| Weight | 256kg (Excluding battery) | |
| Installation Mode | Ground-mounted | |
| Maintenance Mode | From the front | |
| Cable Routing | From the bottom | |
| Cabinet Color | Light grey: RAL 7035 | |
| Input | DC Input | -40V ~ -60VDC |
| Output | Circuit Breaker | 300A |
| Space | Spare Space | 2U, 19-inch rack |
| Battery Space | Max 1300Ah |
Cooling System
| Cooling Type | Air conditioner |
| Cooling Capacity | 1500W |
Optional Accessories
| Lighting | LED |
| Sensor | Smoke, water , door switch, temperature & humidity etc. |
Operating Conditions
| Operating Temperature | -10ºC ~ 50ºC (Including solar radiation) |
| Storage Temperature | -40ºC ~ 70ºC |
| Operating Relative Humidity | 5% ~ 95% |
| Altitude | 0 ~ 2000m (1ºC per 200m temperature derating from 2000 - 4000m) |
| Protection Level | IP55 |
| Noise | ≤65dBA@1.5m |
