| Place of Origin: | Dongguan China |
|---|---|
| Brand Name: | LionRock |
| Model Number: | EC5025 |
| Minimum Order Quantity: | negotiate |
| Price: | negotiate |
| Packaging Details: | export packing |
| Delivery Time: | negotiate |
| Payment Terms: | TT |
| Color: | Grey | Dimension (H×W×D): | 650mm X 650mm X 2000mm |
|---|---|---|---|
| Weight: | 200kg | Spare Space: | 12U |
| Protection Level: | IP55 | Noise: | ≤65dBA@1.5m |
| High Light: | 12U Energy Cabinet,200kg Energy Cabinet,Outdoor Telecom Equipment Cabinets IP55 |
||

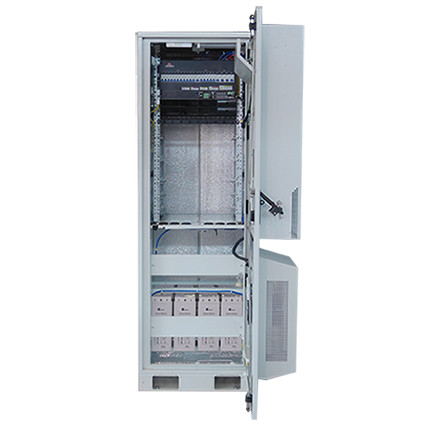

Intelligent Telecom Power Cabinet
Introduction
The EC5000 series telecom power outdoor cabinet with configuration flexibility is a new platform designed to meet customer needs and supports a variety of applications. It is well suited for power, batteries and telecom equipment.
Features
- Small size, easy deployment
- Compact design for installation of equipment
- Intelligent battery management function helps to prolong battery lifespan
- Easy installation & maintenance by front door design
- Wide operating DC input range
- Full galvanic isolation
- Advanced max power point tracking routines
- Support CAN communication
- Open protocol of maintenance interface
- Anti-theft design
Scenarios
- Outdoor
- Solar / diesel / grid hybrid system
General Specification
| System | Dimension (W x D x H) | 650mm x 650mm x 2000mm |
| Weight | 200kg (Excluding battery) | |
| Installation Mode | Ground-mounted | |
| Maintenance Mode | From the front and back | |
| Cable Routing | From the bottom | |
| Cabinet Color | Light grey: RAL 7035 | |
| Input | AC Input | 200-277/346-480VAC, Three phase; 50/60Hz, 35A max |
| DC Input | -40VDC to -60VDC, Max. 200A | |
| Output | Voltage | -42VDC to -58VDC (typical: -48VDC) |
| Capacity | Rectifier Max. 400A | |
| Output Distribution | BLVD | 40Ax5, 32Ax3, 10Ax3 |
| LLVD | 100Ax1, 63Ax1, 32Ax4 | |
| Space | Spare Space | 12U |
| Battery Space | 16U |
Cooling System
| Equipment Cabin | 120W/K cooling capacity |
| Battery Cabin | 200W DC air conditioner |
Optional Accessories
| Lighting | LED |
| Sensor | Smoke, water, door switch, temperature & humidity etc. |
Operating Conditions
| Operating Temperature | -10ºC ~ 45ºC (Including solar radiation) |
| Storage Temperature | -40ºC ~ 70ºC |
| Operating Relative Humidity | 5% ~ 95% |
| Altitude | 0 ~ 2000m (1ºC per 200m temperature derating from 2000 - 4000m) |
| Protection Level | IP55 |
| Noise | ≤65dBA@1.5m |
