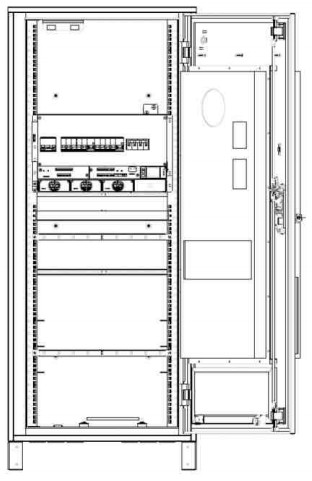

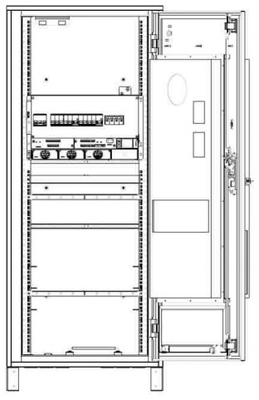

Ground Mounted Energy Cabinet , Telecom Equipment Racks 153.5kg 10U 650x650x1600mm

Basic Information
Place of Origin: Dongguan China
Brand Name: LionRock
Model Number: EC5012R2
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: export packing
Delivery Time: negotiate
Payment Terms: TT
Detail Information
Color: Grey Dimension (W X D X H): 650mm X 650mm X 1600mm
Weight: 153.5kg Spare Space: 10U, 19-inch Rack
Protection Level: IP55 Noise: ≤65dBA@1.5m
High Light:

153.5kg Energy Cabinet


10U Energy Cabinet


650mm Telecom Equipment Racks

Product Description

Efficient Telecom Power Cabinet



The EC5000 series telecom power outdoor cabinet with configuration flexibility is a new platform designed to meet customer needs and supports a variety of applications. It is well suited for power, batteries and telecom equipment.



- Small size, easy deployment
- Compact design for installation of equipment
- Intelligent battery management function helps to prolong battery lifespan
- Easy installation & maintenance by front door design
- Wide operating DC input range
- Full galvanic isolation
- Advanced max power point tracking routines
- Support CAN communication
- Open protocol of maintenance interface
- Anti-theft design



- Outdoor
- Solar / diesel / grid hybrid system


General Specification

System Dimension (W x D x H) 650mm x 650mm x 1600mm
Weight 153.5kg
Installation Mode Ground-mounted
Maintenance Mode From the front
Cable Routing From the bottom
Cabinet olor Light grey: RAL 7035
Input AC Input 200-277/346-480VAC, Three phase; 50/60Hz, 35A max
DC Input -40V ~ -60VDC; max 200A
Output Voltage -48VDC
Capacity 200A max
Output Distribution BLVD 100Ax2, 32Ax2
LLVD 63Ax2, 32Ax2, 16Ax2
Space Spare Space 10U, 19-inch rack


Cooling System

Cooling Type Heat Exchanger
Cooling Capacity 120W/K


Optional Accessories

Lighting LED
Sensor Smoke, water , door switch, temperature & humidity etc.


Operating Conditions

Operating Temperature -10ºC ~ 45ºC (Including solar radiation)
Storage Temperature -40ºC ~ 70ºC
Operating Relative Humidity 5% ~ 95%
Altitude 0 to 2000m (1ºC per 200m temperature derating from 2000 to 4000m)
Protection Level IP55
Noise ≤65dBA@1.5m
