| Place of Origin: | Dongguan China |
|---|---|
| Brand Name: | LionRock |
| Model Number: | Aluminum Alloy PV Support Structure (Ground) |
| Minimum Order Quantity: | negotiate |
| Price: | negotiate |
| Packaging Details: | export packing |
| Delivery Time: | negotiate |
| Payment Terms: | TT |
| Material: | Al | Optional Angle: | 22º / 32º |
|---|---|---|---|
| Maximum Wind Resistance: | 40m/s (144km/h, 3s Gust) | Supported PV Panels Type: | 300 Wp |
| Root Distance Of Basic Unit: | 1900×5000 Mm, (20pcs) | Maximum Height: | 4.5m |
| High Light: | 300Wp Solar Panel Support Structure,4.5m Solar Panel Support Structure,Aluminum Alloy Solar Panel Support Frame |
||
Pole Height 4.5m Solar Panel Support Structure Aluminum Alloy Material Solar Irradiation
Introduction

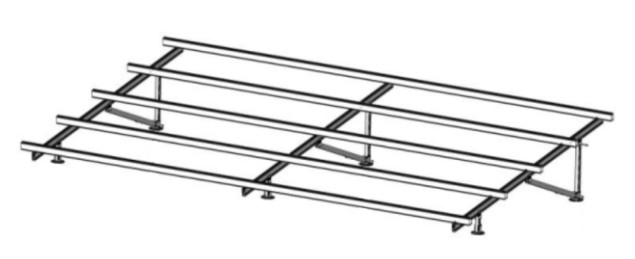

Aluminum Alloy PV Support Structure is used to install the PV panels of 300 Wp, it supports multi-angle flexible installation according to the actual solar irradiation angle.
- Flexible expansion
Specififications
|
Material
|
Al
|
|
Optional Angle
|
5º ~ 60º
|
|
Maximum Wind Resistance
|
40m/s (144km/h, 3s gust)
|
|
Supported PV Panels Type
|
300 Wp
|
|
Root Distance of Basic Unit
|
1900×5000 mm, (20pcs)
|
|
Installed Angle
|
Front Eave
Length L1
(mm)
|
Poles
Distance L2
(mm)
|
Behind Eave
Length L3
(mm)
|
Short Slanting
Pole Length L4
(mm)
|
Long Slanting
Pole Length L5
(mm)
|
Low Eave
Height H1
(mm)
|
Low Pole
Height H2
(mm)
|
High Pole
Height H3
(mm)
|
High Eave
Height H4
(mm)
|
|
22º
|
550
|
1900 | 516 | 2688 | 2751 | 2000 |
2188
|
3013
|
3200 |
|
32º
|
440 | 870 | 400 | 2940 | 3020 | 2000 |
2280
|
3440
|
3700
|
