| Place of Origin: | Dongguan China |
|---|---|
| Brand Name: | LionRock |
| Model Number: | Aluminum Alloy PV Support Structure |
| Minimum Order Quantity: | negotiate |
| Price: | negotiate |
| Packaging Details: | export packing |
| Delivery Time: | negotiate |
| Payment Terms: | TT |
| Material: | Al | Optional Angle: | 22º / 32º |
|---|---|---|---|
| Maximum Wind Resistance: | 40m/s (144km/h, 3s Gust) | Supported PV Panels Type: | 300 Wp |
| Root Distance Of Basic Unit: | 1900×5000 Mm, (20pcs) | Maximum Height: | 4.5m |
| High Light: | 300Wp PV Support Structure,4.5m PV Support Structure |
||
Aluminum Alloy PV Support Structure
Introduction

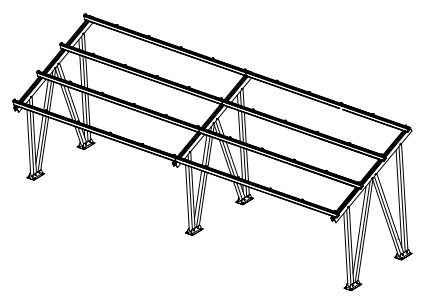

Aluminum Alloy PV Support Structure is used to install the PV panels of 300 Wp, it supports multi-angle flexible installation according to the actual solar irradiation angle.
- Flexible expansion
Specififications
|
Material
|
Al
|
|
Optional Angle
|
5º ~ 60º
|
|
Maximum Wind Resistance
|
40m/s (144km/h, 3s gust)
|
|
Supported PV Panels Type
|
300 Wp
|
|
Root Distance of Basic Unit
|
1900×5000 mm, (20pcs)
|
|
Installed Angle
|
Front Eave
Length L1
(mm)
|
Poles
Distance L2
(mm)
|
Behind Eave
Length L3
(mm)
|
Short Slanting
Pole Length L4
(mm)
|
Long Slanting
Pole Length L5
(mm)
|
Low Eave
Height H1
(mm)
|
Low Pole
Height H2
(mm)
|
High Pole
Height H3
(mm)
|
High Eave
Height H4
(mm)
|
|
22º
|
550
|
1900 | 516 | 2688 | 2751 | 2000 |
2188
|
3013
|
3200 |
|
32º
|
440 | 870 | 400 | 2940 | 3020 | 2000 |
2280
|
3440
|
3700
|
