| Place of Origin: | Dongguan China |
|---|---|
| Brand Name: | LionRock |
| Model Number: | SPU-200 B1 |
| Minimum Order Quantity: | negotiate |
| Price: | negotiate |
| Packaging Details: | export packing |
| Delivery Time: | negotiate |
| Payment Terms: | TT |
| Dimension: | 483 Mm × 385 Mm × 88 Mm | Weight: | 20 Kg |
|---|---|---|---|
| Installation Mode: | In A 19-inch Rack | Cabling Mode: | From The Top, Right & Left |
| Maintenance Mode: | From The Front | Solar Input: | 100 Vdc - 430 Vdc, Max. 15Ax4 |
| High Light: | Solar Power Solutions ODM,100V Solar Power Solutions |
||

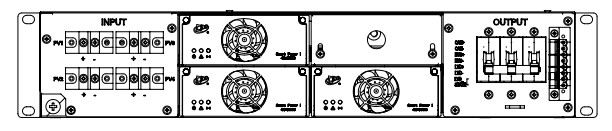

SPU-200 B1 photovoltaic distribution unit
Introduction
Features
- Wide operating DC input range
Scenarios
- Solar hybrid solution
Specification
|
Product Type
|
SPU-200 B1
|
|
| System | Dimension (W×D×H) |
483 mm × 385 mm × 88 mm
|
| Weight |
20 kg
|
|
| Installation Mode |
In a 19-inch rack
|
|
|
Cabling Mode
|
From the top, right & left
|
|
| Maintenance Mode | From the front | |
| Input |
Solar Input
|
100 Vdc - 430 Vdc, Max. 15Ax4
|
| Output |
Voltage
|
-42 Vdc to -58 Vdc (typical: -48 Vdc )
|
|
Capacity
|
Max. 200A
|
|
|
Output Distribution
|
MCB
|
1x300A
|
|
Surge Termind
|
CAN+,CAN-
|
CAN communication
|
|
BUS+,BUS-
|
System bus+/bus-
|
|
|
LVD+,LVD-
|
LVD contactor drive signal
|
|
|
LVD STATE
|
LVD contactor auxiliary contact status.(default:NO)
|
|
|
Environment
|
Operating Temperature
|
-40 ºC to +65 ºC (load needs derating to 80% at +45 ºC to +65 ºC, system can start at -40 ºC to -33 ºC without damage)
|
|
Storage Temperature
|
-40 ºC to +70ºC
|
|
|
Operating Relative Humidity
|
5% to 95% (no condensation)
|
|
|
Altitude
|
0 to 2000 m (1 ºC per 200 m temperature derating from 2000 to 4000 m)
|
|
