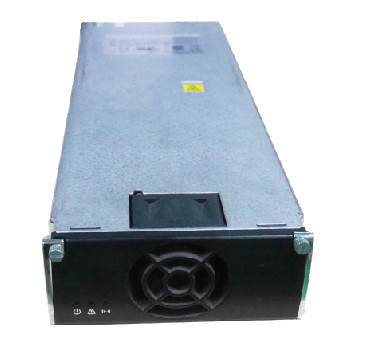

3000W Solar Power Solutions , Mppt Solar Management Unit 108x327.8x 41.6mm Size

Basic Information
Place of Origin: Dongguan China
Brand Name: LionRock
Model Number: MPPT
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: export packing
Delivery Time: negotiate
Payment Terms: TT
Detail Information
Power: 3000W Input Voltage: 187~430Vdc (full Power Range), 100~430Vdc (voltage Range)
Total Harmonic Distortion(THD): <5% (full Load); <10% (half Load) Ripple And Noise: <200mVpp, 20MHz Bandwidth
Dimension: 108mm X 327.8mm X 41.6mm Weight: 2.5kg
High Light:

3000W Solar Power Solutions


41.6mm Solar Power Solutions


327.8mm Mppt Solar Management Unit

Product Description

Maximum Power Point Tracking Solar Power Solutions




- Max 98% efficiency, energy saving
- Modular design, compatible with Huawei 50A module system
- CAN communication
- Support hot-swap
- Wide temperature range
- Support voltage and current regulation
- Built-in fan cooling


Telecom DC Power System - MPPT


Power 3000W
Input Voltage 187~430Vdc (full power range), 100~430Vdc (voltage range)
Input Current ≤18A rms at nominal input, ≤21A rms at 185Vdc input
Total Harmonic Distortion(THD) <5% (full load); <10% (half load)
Output Voltage 53.5Vdc (rated); 42~58Vdc (adjustable)
Ripple and Noise <200mVpp, 20MHz bandwidth
Maximum Output Current 56.6±0.5A
Efficiency ≥95.5%@normal; ≥96.2% max efficiency, MPPT efficiency≥99%
Environment −40 to +75oC (operating temp), +50 to +75oC (derating apply)
Dimension (W x D x H) 108mm x 327.8mm x 41.6mm
Weight 2.5kg
