ODM LionRock Prefabricated Data Center Modular ISO Standard Fire Protection

With the demand of data communication and edge computing, telecommunication need to deploy medium scale data centre with data communication capability much quicker and more to meet the 5G network development.



DataCage is the product developed to address this need in the market. Other than typical mobile data centre, DataCage offers mixed IT (information technology) and CT (communication technology) power and energy infrastructure in a prefabricated ISO container allowing immediate installation of server and telecom equipment to shorten the deployment and commissioning time. DataCage is designed to operate in various terrains as well as harshest environments. The DataCage integrated power supply and distribution (UPS, rectifiers and batteries), CRAC (computer room air conditioning), IT and CT equipment racks.

- High energy efficiency: designed to reduce power consumption and operating costs. State of the art cooling system with cold/hot aisle containment and in-row CRAC units.

- Reliability: redundant and fault tolerant capabilities according to Uptime Institute guidelines for Tier II and Tier III facilities.

- Modularity: the standard ISO container enclosure ensure easy transportation all over the world. Easily scalable with additional modules.

- ICT cabinet flexibility: supports various ICT cabinet dimensions. Different combinations of IT and CT cabinets according to specific design needs.

- ICT load flexibility: CRACs along with UPS and rectifiers can be configured to support different ICT loads.

- Optimized space use: up to 12 ICT cabinets in an ISO40HC container.

- Alternative power supplies: Mains power and standby power connection available.

- Security: CCTV surveillance system and control access.

- Fire protection: automatic fire detection and suppression system with clean agent.

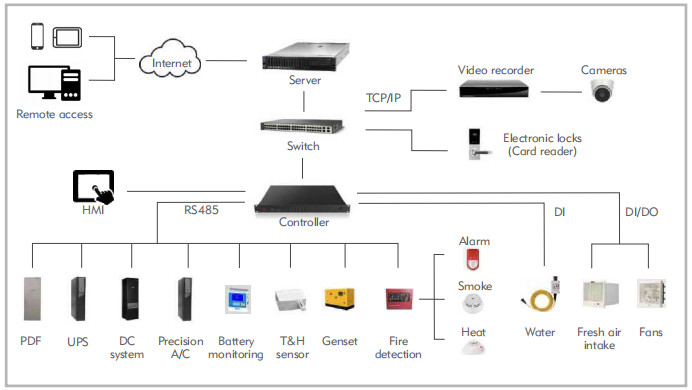

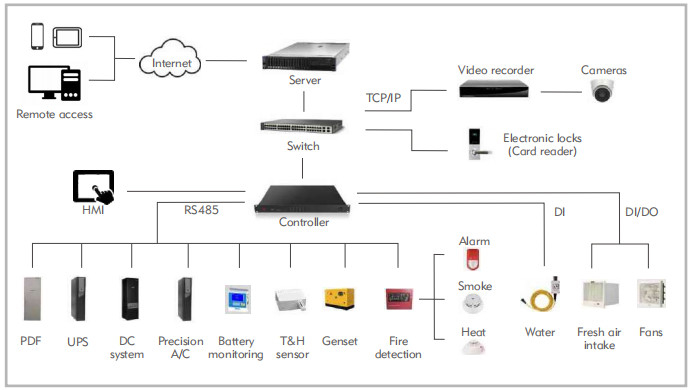

- Central management: complete monitoring of the status of the different subsystems. Remote access by multiple

users.

- Optional features and customized layouts possible.

- Dual power inputs with automatic changeover for grid and standby generator system.

- Redundant configuration of power distribution paths as required.

- Support of IT and telecom equipment with different power and energy requirements.

- Configurable distribution of IT and CT cabinets.

- Modular UPS and DC rectifier system with redundant hot- swappable modules.

- High efficient UPS (>96%) with maintenance bypass.

- UPS with standard 15 minutes of battery backup time with option for longer duration.

- Intelligent battery management system.
