40ft Prefabricated Data Center Solutions 12192x2438x2896mm Dimensions

Basic Information
Place of Origin: Dongguan China
Brand Name: LionRock
Model Number: All-in-one 40ft
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: export packing
Delivery Time: negotiate
Payment Terms: TT
Detail Information
Dimensions: 12192 X 2438 X 2896 Weight Fully Equipped: <25 Tons
Ambient/Storage Temperature: -20 To 452 /-40 To 70 Total ICT Design Load: 56~93kW
Design Load Per STD Cabinet: 5.6~9kW Design Load Per Deep Cabinet: 8~13kW
High Light:

2438mm Prefabricated Data Center


2896mm Prefabricated Data Center


12192mm Prefabricated Data Center Solutions

Product Description

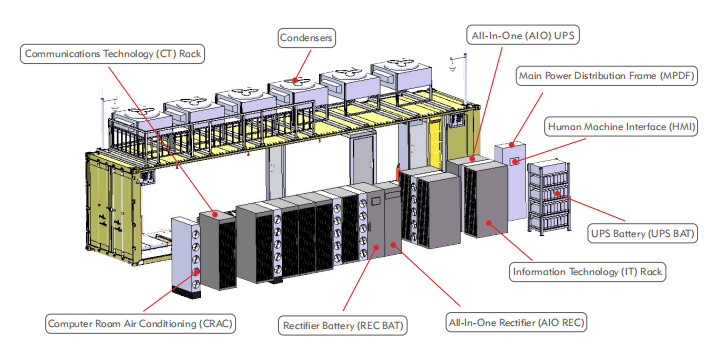

40ft All-in-one Prefabricated Data Center


General Specifications

Fire Protection Type Automatic fire detection (smoke and heat) with
gas suppression system (HFC-227ea)
Monitoring and
Access Control Electronic lock with IC card reader
Monitoring Video: Infrared IP cameras
Data: PDF, UPS, DC, A/C, Temp & Hum, fire protection, access control and ventilation
HMI Touch screen
Remote Access Web, App
Notification SMS, email
Structure Dimensions (W x D x H): mm 12192 x 2438 x 2896 (ISO40HC)
Weight Fully Equipped <25 tons
Protection Level IP551
Ambient/Storage Temperature: °C -20 to 452 /-40 to 70
Humidity: % 5 to 95
Altitude: m ≤4000 (derating start >1000)
Corrosion Class C (500m away from seashore)



1 - Optional IP65 protection level
2 - Optional maximum temperature up to 55°C
