| Place of Origin: | Dongguan China |
|---|---|
| Brand Name: | LionRock |
| Model Number: | SMU10X2-U40A60 |
| Minimum Order Quantity: | negotiate |
| Price: | negotiate |
| Packaging Details: | export packing |
| Delivery Time: | negotiate |
| Payment Terms: | TT |
| Color: | Black | Dimension: | 6000mm X 1350mm X 2000mm |
|---|---|---|---|
| Weight: | 2850kg | IT Equipment Space: | 250U |
| Protection Level: | IP20 | Number Of Cabinet: | 10 |
| High Light: | Black Server Cabinet 250U,2850kg Black Server Cabinet,10Inch Black Server Cabinet |
||

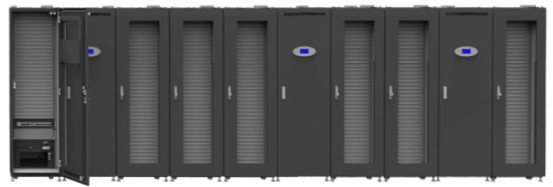

Any Indoor Machine Rooms Server Cabinet
Introduction
Product Features
| System | Dimension (W x D x H) | 6000mm x 1350mm x 2000mm |
| Weight | 2850kg | |
| Installation | Indoor floor mount | |
| Cabling | Both top and bottom | |
| Maintenance Access | From the front and rear | |
| Airduct Sealing Option | Cold airduct sealing, hot airduct sealing or both are optional | |
| Cabinet Color | Black: RAL 9004 | |
| IT Equipment Space | 250U | |
| Protection Level | IP20 | |
| Operating Temperature | -20ºC ~ 45ºC | |
| Number of Cabinet | 10 | |
| Air Conditioning System | Cooling Capacity |
20kW x 3
|
| Cooling Mode | Constant temperature (constant humidity is optional) | |
| Installation | Rack mount | |
| Air Supply Mode | Front air supply, rear air inlet | |
| Power Supply | Input Power Requirement |
380/400/415VAC, 50/60Hz, 3P+N+PE, 125A max
|
| AC Distribution |
125A/3P for UPS, 40A/3P x 3 for A/C, 20A/1P x 7 for PDUs,
32A/1P x 6 for other IT equipments
|
|
| Surge Protection | C class, In 20KA, Imax 40KA, 8/20µs | |
| ATS (5U) |
Optional (3P+N+PE, 125A max)
|
|
| IT Equipment Capacity |
24.5kVA/21kW
|
|
| UPS Capacity |
40kVA/34kW (20-60kVA optional and support A/C optional)
|
|
| UPS Input Voltage Rage |
138-485VAC, 45-65Hz, 3P+N+PE
|
|
| UPS Output Voltage Range |
380/400/415VAC, 50/60Hz, 3P+N+PE
|
|
| UPS Backup Battery | Lithium (LiFePO) | |
| UPS Backup Time | Std 15mins based on IT load (optional up to 60 minutes) | |
| UPS Maintenance Bypass | Standard configuration included | |
| PDU | 112 sockets, 16A x 28, 10A x 84. International sockets available | |
| Monitoring | Monitoring Platform | Support Web base access, multi-sites support, unified management of network management |
| Local Interface | 10" touch screen HMI | |
| Sensors and Security | Standard water, smoke, temperature & humidity included, door sensor and electric lock are optional | |
| Video Monitoring | Camera on display screen |
