| Place of Origin: | Dongguan China |
|---|---|
| Brand Name: | LionRock |
| Model Number: | SMU1021-U10A06 |
| Minimum Order Quantity: | negotiate |
| Price: | negotiate |
| Packaging Details: | export packing |
| Delivery Time: | negotiate |
| Payment Terms: | TT |
| Color: | Black | Dimension: | 1200mm X 1200mm X 2000mm |
|---|---|---|---|
| Weight: | 620kg | IT Equipment Space: | 48U |
| Protection Level: | IP20 | Operating Temperature: | -20ºC ~ 45ºC |
| High Light: | IP20 48U Server Cabinet,Railway Station 48U Server Cabinet,Electricity Substation 48U Data Cabinet |
||

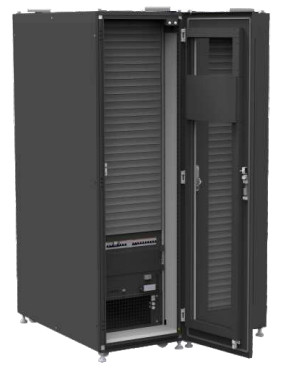

Modular Design And Allow Future Expansion Server Cabinet
Introduction
Product Features
| System | Dimension (W x D x H) | 1200mm x 1200mm x 2000mm |
| Weight | 620kg | |
| Installation | Indoor floor mount | |
| Cabling | Both top and bottom | |
| Maintenance Access | From the front and rear | |
| Airduct Sealing Option | Cold airduct sealing, hot airduct sealing or both are optional | |
| Cabinet Color | Black: RAL 9004 | |
| IT Equipment Space | 48U | |
| Protection Level | IP20 | |
| Operating Temperature | -20ºC ~ 45ºC | |
| Number of Cabinet | 2 | |
| Air Conditioning System | Cooling Capacity | 6.5kW(3.5-12kW optional) |
| Cooling Mode | Constant temperature (constant humidity is optional) | |
| Installation | Rack mount | |
| Air Supply Mode | Front air supply, rear air inlet | |
| Power Supply | Input Power Requirement | 220/230/240VAC, 50/60Hz, 1P+N+PE, 125A max |
| AC Distribution |
63A/1P for UPS, 50A/1P for A/C, 20A/1P x 2 for PDUs,16A/1P x 6 for other IT equipments
|
|
| Surge Protection | C class, In 20KA, Imax 40KA, 8/20µs | |
| ATS (5U) | Optional (2P+PE, 125A max) | |
| IT Equipment Capacity | 7kVA/6kW | |
| UPS Capacity |
10kVA/8.5kW (6-20kVA optional and support A/C optional)
|
|
| UPS Input Voltage Rage | 100-240VAC, 45-65Hz, 1P+N+PE | |
| UPS Output Voltage Range | 220/230/240VAC, 50/60Hz, 1P+N+PE | |
| UPS Backup Battery | Lithium (LiFePO) | |
| UPS Backup Time | Std 15mins based on IT load (optional up to 60 minutes) | |
| UPS Maintenance Bypass | Standard configuration included | |
| PDU | 32 sockets, 16A x 8, 10A x 24. International sockets available | |
| Monitoring | Monitoring Platform | Support Web base access, multi-sites support, unified management of network management |
| Local Interface | 10" touch screen HMI | |
| Sensors and Security | Standard water, smoke, temperature & humidity included, door sensor and electric lock are optional | |
| Video Monitoring | Camera on display screen |
