-60V DC Embedded Switch Mode Power Supply Easy Installation Power Ac Dc

Basic Information
Place of Origin: Dongguan China
Brand Name: LionRock
Model Number: TEP 400R-B1
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: export packing
Delivery Time: negotiate
Payment Terms: TT
Detail Information
Dimension: 483mm X 400mm X 312mm Weight: 29 Kg
Installation Mode: In A 19-inch Rack AC Input: 200-277/346-480Vac, Three-phase, 50/60Hz, Max. 35A
DC1 Input: -40Vdc To -60Vdc, Max. 200A Voltage: -42Vdc To -58Vdc (typical: -48Vdc)
High Light:

SNMP Embedded Switch Mode Power Supply


50Hz Embedded Switch Mode Power Supply


480Vac Embedded Switch Mode Power Supply

Product Description

- 60V DC Embedded Switch Mode Power Supply ,Easy Installation Power Ac Dc

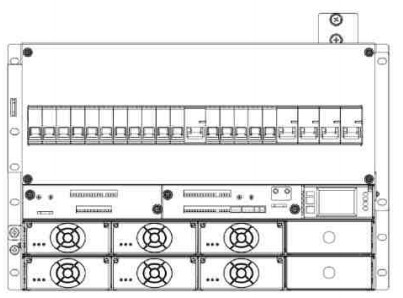

TEP400R System is a compact and intelligent power system containing up to SP48/3000 rectifiers, SC501 controller module, AC connection and DC connection. It supports remote monitoring and management with SNMP. In addition, easy installation and compact size add to the success of the system.



- 19'' sub-rack, easy to be embedded into all Standard kinds of telecom equipment. Structure design, strong commonality, easy installation
- Compact structure, higher power density.
- Small volume, save installation space and cost.
- Sub-rack installed, facilitate customer configuration.
- Hot-swappable modules without injury, on-line maintenance, quick and easy.
- Wide range of input rectifier module, adapt to the strong adaptability for the grid.
- Perfect battery management, improve the battery life, keep the battery good working condition.
- With over current, over voltage, over temperature etc. variety of alarm and protection function.
- Management priority: grid > battery > DG



- Fiber optic network
- Access network
- Transmission equipment
- Mobile communication
- Satellite communication ground station


- Diesel / grid hybrid system


General Specification

System Dimension (W x D x H) 483mm x 400mm x 312mm
Weight 29 kg
Installation Mode In a 19-inch rack
Cabling Mode From the top, right & left
Maintenance Mode From the front
Input AC Input 200-277/346-480Vac, three-phase, 50/60Hz, Max. 35A
DC1 Input -40Vdc to -60Vdc, Max. 200A
Output Voltage -42Vdc to -58Vdc (typical: -48Vdc)
Capacity Rectifier Max. 400A
Output Distribution Battery Branch 4x125A breaker
LLVD Branch 1x100A MCB, 1x63A MCB,4x32A MCB
BLVD Branch 5x40A MCB, 3x32A MCB, 3x10A MCB
Surge Protection AC Input N/A
DC Output 20kA (8/20 µs)
Environment Operating Temperature -40ºC to +65ºC (load needs derating to 80% at +45ºC to +65ºC, system can start at -40ºC to -33ºC without damage)
Storage Temperature -40ºC to +70ºC
Operating Relative Humidity 5% to 95% (no condensation)
Altitude 0 to 2000 m (1ºC per 200m temperature derating from 2000 to 4000m)

Remark: MPPT: Maximum Power Point Tracking; HFSM: High Frequency Switch Module
