LionRock 300VAC Blade Power IP65 309mm×98mm×415mm Size

Basic Information
Place of Origin: Dongguan China
Brand Name: LionRock
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: export packing
Delivery Time: negotiate
Payment Terms: TT
Detail Information
Weight: 9.2kg Dimension: 309W×98D×415H
Protection Grade: IP65 Ambient Temperature: -40°C ~ + 55°C
AC Power Supply: 80-300VAC HVDC Power Supply: 130-400VDC
High Light:

300VAC Blade Power


415mm Blade Power


98mm Blade Power

Product Description

Simple Operation And Maintenance Blade Power


3Tech launched the LionRock Blade Power series product DBP3000 in fall 2020 which is specifically designed for terminal communication site.


As the most basic unit in the telecom power solution series, DBP3000 can use in various scenarios and also suitable for MBB in 5G era.


LionRock DBP3000 is an outdoor design AC/DC rectifier rated 3000W to convert the normal single phase AC supply from mains power into telecom quality DC power to mobile transmitters and receivers in the urban area.


Combined with the LionRock intelligent energy storage battery DBB4852 pack, the system maintains the mobile transmitter in continuous operation even if there is a black out.

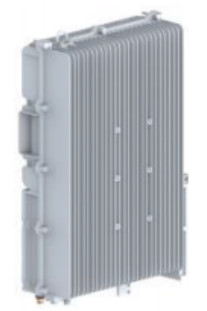

LionRock 300VAC Blade Power IP65 309mm×98mm×415mm Size 0


All LionRock power and battery modules can be installed in parallel to increase the capacity to suit various site demand. LionRock Blade power is capable to power all the typical antenna in urban area to provide a 100% coverage.


IP65 design ensure fully weatherproof and suitable for outdoor installation.


The pole mount design has no impact in the installation footprint and making deployment and installation a lot easier.


LionRock 300VAC Blade Power IP65 309mm×98mm×415mm Size 1


Designed with a fully natural heat dissipation casing, the distributed blade power-DBP3000 requires minimum maintenance.


Compact construction, light weight, accept both AC and DC voltage input, wide range of ambient temperature, all these features make DBP3000 adapt to various scenarios.


LionRock 300VAC Blade Power IP65 309mm×98mm×415mm Size 2

Key parameters


- Weight: 9.2kg

- Dimension (mm): 309W×98D×415H

- IP65 protection grade

- Ambient temperature: -40°C ~ + 55°C.

- AC power supply : 80-300VAC

- HVDC power supply: 130-400VDC




- MBB (Mobile Broadband)

- Outdoor Distributed Site

- Remote Radio Unit (RRU) remote station

- Easy Macro site

- Lamp Site
