| Place of Origin: | Dongguan China |
|---|---|
| Brand Name: | LionRock |
| Minimum Order Quantity: | negotiate |
| Price: | negotiate |
| Packaging Details: | export packing |
| Delivery Time: | negotiate |
| Payment Terms: | TT |
| Voltage Range: | 110/220VAC (80VAC - 300VAC); 240/336VDC (130VDC - 400VDC) | Frequency Range: | 50/60Hz (45Hz - 66Hz) |
|---|---|---|---|
| AC SPD: | 20kA (8/20µs) | Dimensions: | 98mm X 309mm X 415mm |
| Weight: | .2kg | IP Level: | IP65 |
| High Light: | 20kA Blade Battery,60Hz Blade Battery,220VAC Blade Battery |
||
Support Pole, Wall, Tower Installation Blade Power
Introduction
Distributed Blade Power supply is a new generation of distributed power supply solutions designed specifically for small cell sites, like 5G communication tower. The utility model has the advantages of easy installation, easy expansion, maintenance-free, flexible power supply, etc. The utility model is mainly applied to the AC / DC power supply and backup scenarios including Easy Macro, indoor RRU, outdoor RRU, etc.
Features
- Small size, light weight
- Wide operating temperature -40ºC ~ 55ºC (without sun radiation)
- IP65 high degree of protection for harsh environment applications

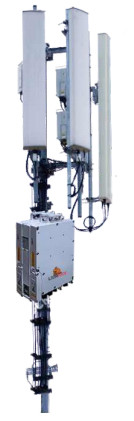

- Support pole, wall, tower installation
General Specification
| Voltage Range | 110/220VAC (80VAC - 300VAC); 240/336VDC (130VDC - 400VDC) |
| Frequency Range | 50/60Hz (45Hz - 66Hz) |
| AC SPD | 20kA (8/20µs) |
| Input Power Factor | ≥0.99 (100% load) |
| Rated Output Power | 3000W at 200VAC |
| Rated Output Voltage | 54.5VDC |
| Efficiency at 220VAC | ≥96% (peak); ≥95.5% (load) |
| DC SPD | 10kA (8/20µs) |
| Load Output Branch | 4 channels (1 channels high-power quick-plug terminals, 60A per channel, 3 channels quick connect terminal output interface, 40A per channel) |
| Operating Temperature Range | -40 ~ +55°C (Non-solar radiation) |
| Storage Temperature Range | -45 ~ +70°C |
| Relative Humidity | 5% ~ 95%RH |
| Dimensions (W x D x H) | 98mm x 309mm x 415mm |
| Weight | 9.2kg |
| Alarm | Input undervoltage, input overvoltage, overtemperature, output overvoltage, etc. |
| Heat Cooling | Natural heat dissipation |
| MTBF | 5 x 105 hours |
| IP Level | IP65 |
| Installation Mode | Pole or wall-mounted |
| Wiring Method | From the bottom |
| Communication | RS485/CAN/Bluetooth/4G |
