IP20 250U Edge Data Centres UPS Integrated 45 Degree Temperature

Basic Information
Place of Origin: Dongguan China
Brand Name: LionRock
Model Number: SMU10X2-U40A60
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: export packing
Delivery Time: negotiate
Payment Terms: TT
Detail Information
Color: Black Dimension: 6000mm X 1350mm X 2000mm
Weight: 2850kg IT Equipment Space: 250U
Protection Level: IP20 Operating Temperature: -20ºC ~ 45ºC
High Light:

250U Edge Data Centres


45Degree Edge Data Centres


IP20 UPS Data Centre

Product Description

Application Area Edge Computing Infrastructure


Smart Micro Unit (SMU) data centre is a product that integrated UPS, power distribution board, air conditioning system, fire fighting equipment and power environment monitoring into a server style cabinet system. The product is a one stop solution to edge computing with increasing demand due to broad band network and 5G mobile network development.

Product Features

Rapid deployment
- Integrated design, fully factory assembly and tested before delivery
- Simple and quick site installation, a real plug and play solution
- SMU is designed to fully self-contained environment and dedicated machine room is not required
- Customised to specific operation environment possible
- Modular design and allow future expansion


High energy efficient and reduce carbon footprint

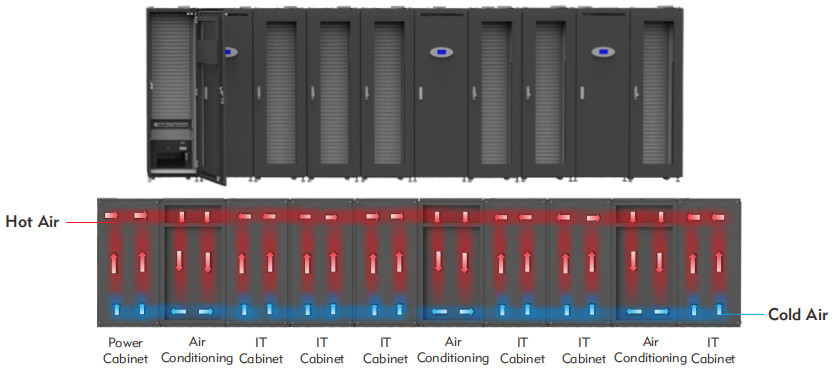

- Integrated Cabinet and sealed airduct design, effective separation of hot and cold air passages
- Line or rack type air conditioning unit installed close to server equipment
- Shorten and separated air path for efficient cooling
Security and Reliable
- Fully sealed and dust proof design with effective noise barrier
- Support N+1, 2N design to meet different infrastructure tier standards
- Emergency ventilation system in event of air conditioning failure, to safeguard IT equipment for proper shutdown and short terms operation
- Automatic fire extinguishing system to put out any fire in the cabinet protecting expensive equipment and personnel safety
- 10" touch screen HMI with camera, timely capture, monitoring the scene
Intelligent operation and maintenance
- Large local HMI (Human Machine Interface) with comprehensive system and performance information
- Remote Web base monitoring and multi-sites centralized management of real time and historical information with Mobile APPs in development
- Alarm can be sent through email/SMS/phone as well as local audio and visual indication, alarm analysis with fault handling recommendations
Application Area
- Any server required in electricity substation, railway station, financial outlets, government office, school, health care centre, facility security, small and medium enterprises, retail store and any operator business outlets
- Any indoor machine rooms
IP20 250U Edge Data Centres UPS Integrated 45 Degree Temperature 0
System Dimension (W x D x H) 6000mm x 1350mm x 2000mm
Weight 2850kg
Installation Indoor floor mount
Cabling Both top and bottom
Maintenance Access From the front and rear
Airduct Sealing Option Cold airduct sealing, hot airduct sealing or both are optional
Cabinet Color Black: RAL 9004
IT Equipment Space 250U
Protection Level IP20
Operating Temperature -20ºC ~ 45ºC
Number of Cabinet 10
Air Conditioning System Cooling Capacity
20kW x 3
Cooling Mode Constant temperature (constant humidity is optional)
Installation Rack mount
Air Supply Mode Front air supply, rear air inlet
Power Supply Input Power Requirement
380/400/415VAC, 50/60Hz, 3P+N+PE, 125A max
AC Distribution
125A/3P for UPS, 40A/3P x 3 for A/C, 20A/1P x 7 for PDUs,
32A/1P x 6 for other IT equipments
Surge Protection C class, In 20KA, Imax 40KA, 8/20µs
ATS (5U)
Optional (3P+N+PE, 125A max)
IT Equipment Capacity
UPS Capacity
40kVA/34kW (20-60kVA optional and support A/C optional)
UPS Input Voltage Rage
138-485VAC, 45-65Hz, 3P+N+PE
UPS Output Voltage Range
380/400/415VAC, 50/60Hz, 3P+N+PE
UPS Backup Battery Lithium (LiFePO)
UPS Backup Time Std 15mins based on IT load (optional up to 60 minutes)
UPS Maintenance Bypass Standard configuration included
PDU 112 sockets, 16A x 28, 10A x 84. International sockets available
Monitoring Monitoring Platform Support Web base access, multi-sites support, unified management of network management
Local Interface 10" touch screen HMI
Sensors and Security Standard water, smoke, temperature & humidity included, door sensor and electric lock are optional
Video Monitoring Camera on display screen
