Detail Information

Color:	Black	Dimension:	605mm X 1200mm X 2000mm
Weight:	320kg	IT Equipment Space:	24U
Protection Level:	IP20	Operating Temperature:	-20ºC ~ 45ºC
High Light:	1200mm Edge Computing Infrastructure , 2000mm Edge Computing Infrastructure , 24U UPS Data Center

Product Description

Rapid Deployment Edge Computing Infrastructure

Introduction

Smart Micro Unit (SMU) data centre is a product that integrated UPS, power distribution board, air conditioning system, fire fighting equipment and power environment monitoring into a server style cabinet system. The product is a one stop solution to edge computing with increasing demand due to broad band network and 5G mobile network development.

Product Features

Rapid deployment

- Integrated design, fully factory assembly and tested before delivery

- Simple and quick site installation, a real plug and play solution

- SMU is designed to fully self-contained environment and dedicated machine room is not required

- Customised to specific operation environment possible

- Modular design and allow future expansion

High energy efficient and reduce carbon footprint

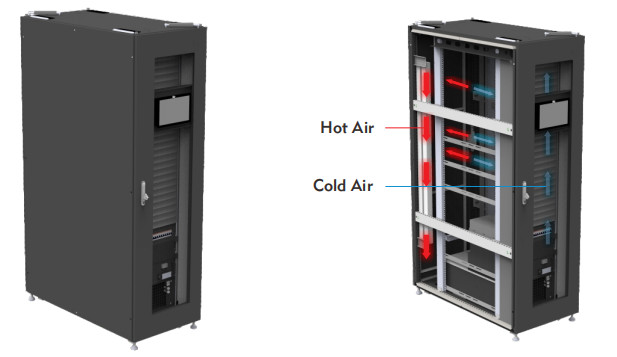

- Integrated Cabinet and sealed airduct design, effective separation of hot and cold air passages

- Line or rack type air conditioning unit installed close to server equipment

- Shorten and separated air path for efficient cooling

Security and Reliable

- Fully sealed and dust proof design with effective noise barrier

- Support N+1, 2N design to meet different infrastructure tier standards

- Emergency ventilation system in event of air conditioning failure, to safeguard IT equipment for proper shutdown and short terms operation

- Automatic fire extinguishing system to put out any fire in the cabinet protecting expensive equipment and personnel safety

- 10" touch screen HMI with camera, timely capture, monitoring the scene

Intelligent operation and maintenance

- Large local HMI (Human Machine Interface) with comprehensive system and performance information

- Remote Web base monitoring and multi-sites centralized management of real time and historical information with Mobile APPs in development

- Alarm can be sent through email/SMS/phone as well as local audio and visual indication, alarm analysis with fault handling recommendations

Application Area

- Any server required in electricity substation, railway station, financial outlets, government office, school, health care centre, facility security, small and medium enterprises, retail store and any operator business outlets

- Any indoor machine rooms

System	Dimension (W x D x H)	605mm x 1200mm x 2000mm
	Weight	320kg
	Installation	Indoor floor mount
	Cabling	Both top and bottom
	Maintenance Access	From the front and rear
	Airduct Sealing Option	Cold airduct sealing, hot airduct sealing or both are optional
	Cabinet Color	Black: RAL 9004
	IT Equipment Space	24U
	Protection Level	IP20
	Operating Temperature	-20ºC ~ 45ºC
	Number of Cabinet	1
Air Conditioning System	Cooling Capacity	3.5kW
	Cooling Mode	Constant temperature (constant humidity is optional)
	Installation	Rack mount
	Air Supply Mode	Front air supply, rear air inlet
Power Supply	Input Power Requirement	220/230/240VAC, 50/60Hz, 1P+N+PE, 63A max
	AC Distribution	32A for UPS, 32A for SPD, 20A for A/C, 20A for PDU. Others are customizable
	Surge Protection	C class, In 20KA, Imax 40KA, 8/20µs
	ATS (5U)	Optional (2P+PE, 63A max)
	IT Equipment Capacity	3.5kVA/3kW
	UPS Capacity	6kVA/5.1kW (support A/C optional)
	UPS Input Voltage Rage	100-240VAC, 45-65Hz, 1P+N+PE
	UPS Output Voltage Range	220/230/240VAC, 50/60Hz, 1P+N+PE
	UPS Backup Battery	Lithium (LiFePO)
	UPS Backup Time	Std 15mins based on IT load (optional up to 60 minutes)
	UPS Maintenance Bypass	Standard configuration included
	PDU	16 sockets, 16A x 4, 10A x 12. International sockets available
Monitoring	Monitoring Platform	Support Web base access, multi-sites support, unified management of network management
	Local Interface	10" touch screen HMI
	Sensors and Security	Standard water, smoke, temperature & humidity included, door sensor and electric lock are optional
	Video Monitoring	Camera on display screen

Tag:

Place of Origin:	Dongguan China
Brand Name:	LionRock
Model Number:	SMU1011-U06A03

Minimum Order Quantity:	negotiate
Price:	negotiate
Packaging Details:	export packing
Delivery Time:	negotiate
Payment Terms:	TT
