872kW Diesel Generating Sets , Diesel Powered Hydraulic Power Unit 6800kg ISO14001

Protective Grille For Fan And Rotating Parts AC Mitsubishi 60Hz Diesel Generating Sets

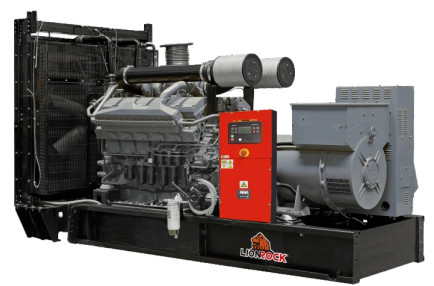

LionRock Generator sets are suitable for commercial, industrial, telecom, Data Centre and infrastructure application.

Standard features

- Set mount radiator with engine driven fan
- Cooling system standard for 40°C ambient
- Anti-vibration mounts between engine / alternator and baseframe
- Baseframe fuel tank
- Protective grille for fan and rotating parts
- Exhaust bellow and industrial silencer
- 24VDC starter motor and battery
- Generator sets are CE Certified
- Standard 3P manual output breaker
- Coolant and oil drains with valve
- Each LionRock® generating set will go through factory test at 0%, 25%, 50%, 75%, 100% and 110% of rated capacity

Standard and Quality

- All generator sets comply with international standards including ISO8528, ISO3046, IEC60034, BS5000
- Manufacturing standard certified to ISO9001, ISO14001, ISO18001

- CE certificate for generator set

Rating definition as per ISO8528

- Prime - Output available with varying load for an unlimited time. Average power output is 70% of the prime power rating. Typical peak demand    is 100% of prime rated kWe with 10% overload capability for emergency use for a maximum of 1 hour in 12.
- Standby - Output available with varying load during a normal power supply failure. Average power output is 80% of the standby power rating.    Typical annual operating time less than 500hours. No overload is available.

Features

- Automatic mains failure

- Fuel tank content in %

- Oil temperature gauge

- Modbus SNMP

- Modbus TCP/IP Ethernet

- Extended input/output modules

- RS485 Modbus



Alternative control modules

- Wide range of control module options including:

ComAp

Deepsea

Woodward

Smartgen etc.

- Multiple generators parallel as well as parallel with mains power



Soundproof Canopy



Dimensions and Weights

Length (L): mm	6058
Width (W): mm	2438
Height (H): mm	2896
Weight: kg	13300
Fuel Tank Capacity: litres	N/A



Sound Pressure Levels

75% Load	60Hz
Prime: dBA@1m	95
dBA@7m	87
dBA@15m	81



Stainless steel locks and handles on doors

- Black zinc die cast hinges on doors proven to withstand extreme weather conditions

- Zinc plated standard fastener with stainless steel option

- Enclosure made of sheet steel pre-treated with zinc phosphate prior to polyester powder coating



Secure, lockable doors prevent unauthorized access to control panel, fuel fill and battery

- Emergency stop buttons mounted on enclosure exterior surface

- All moving parts including Cooling fan, charging alternator, belt are fully guarded



Hinged doors of 180 deg swing on both sides of the enclosure for easy access and maintenance

- Lube oil and water drains hosed to baseframe side to exterior

- Removable end panels allow access to radiator, exhaust silencer and alternator rear

- Exhaust silencer inside enclosure



Easy Transportable

- Lifting points on both side of baseframe

- Anchor and drag points at baseframe ends
