| Place of Origin: | Dongguan China |
|---|---|
| Brand Name: | LionRock |
| Model Number: | LRP85X |
| Minimum Order Quantity: | negotiate |
| Price: | negotiate |
| Packaging Details: | export packing |
| Delivery Time: | negotiate |
| Payment Terms: | TT |
| Color: | Black | Length: | 2000 |
|---|---|---|---|
| Width: | 1100 | Height: | 1350 |
| Weight: | 1010 | Fuel Tank: | 220 |
| High Light: | Anti Vibration 85 Kva Generator,220 Litres 85 Kva Generator,85Kva Diesel Generator Power Output |
||

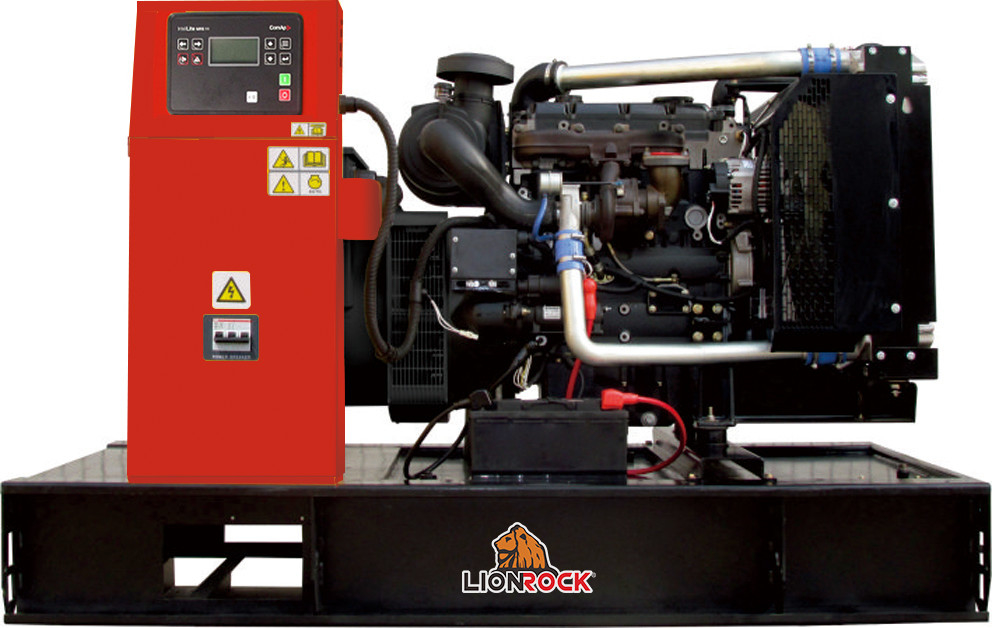

Anti-Vibration Mounts Between Engine / Alternator And Baseframe AC Perkins 60Hz Diesel Generating Sets
LionRock Generator sets are suitable for commercial, industrial, telecom, Data Centre and infrastructure application.
Standard features
- Set mount radiator with engine driven fan
- Cooling system standard for 40°C ambient
- Anti-vibration mounts between engine / alternator and baseframe
- Baseframe fuel tank
- Protective grille for fan and rotating parts
- Exhaust bellow and industrial silencer
- 12VDC starter motor and battery
- Generator sets are CE Certified
- Standard 3P manual output breaker
- Coolant and oil drains with valve
- Each LionRock® generating set will go through factory test at 0%, 25%, 50%, 75%, 100% and 110% of rated capacity
Standard and Quality
- All generator sets comply with international standards including ISO8528, ISO3046, IEC60034, BS5000
- Manufacturing standard certified to ISO9001, ISO14001, ISO18001
- CE certificate for generator set
Rating definition as per ISO8528
- Prime - Output available with varying load for an unlimited time. Average power output is 70% of the prime power rating. Typical peak demand is 100% of prime rated kWe with 10% overload capability for emergency use for a maximum of 1 hour in 12.
- Standby - Output available with varying load during a normal power supply failure. Average power output is 80% of the standby power rating. Typical annual operating time less than 500hours. No overload is available.
| Power Ratings at 0.8 power factor | |||||
|
Voltage
(V)
|
Standby
|
Prime
|
Maximum current
(Amp)
|
||
|
kVA
|
kW
|
kVA
|
kW
|
||
|
220/127
|
85 |
68
|
78 | 62.4 | 223 |
|
440/254
|
85 |
68
|
78 | 62.4 | 111 |
|
480/277
|
85 |
68
|
78 | 62.4 | 102 |
|
Fuel Consumption
|
||||
|
Load (%)
|
Standby
|
100 | 75 | 50 |
|
(L/h)
|
19.3 | 17.6 | 13.4 | 9.6 |
|
Dimensions
|
Weight
|
Fuel Tank
|
||
|
Length (L)
|
Width (W)
|
Height (H)
|
Dry
|
Baseframe
|
|
mm
|
mm
|
mm
|
kg |
litres
|
| 2000 | 1100 | 1350 | 1010 | 220 |
|
Length (L): mm
|
2770 |
|
Width (W): mm
|
1120 |
|
Height (H): mm
|
1600 |
|
Weight: kg
|
1380 |
|
Fuel Tank Capacity: litres
|
220 |
|
75% Load
|
60Hz
|
|
Prime: dBA@1m
|
82 |
|
dBA@7m
|
72 |
|
dBA@15m
|
65 |
