| Place of Origin: | Dongguan China |
|---|---|
| Brand Name: | LionRock |
| Model Number: | LRC165 |
| Minimum Order Quantity: | negotiate |
| Price: | negotiate |
| Packaging Details: | export packing |
| Delivery Time: | negotiate |
| Payment Terms: | TT |
| Frequency: | 50Hz | Length: | 2300 |
|---|---|---|---|
| Width: | 1100 | Height: | 1650 |
| Weight: | 1350 | Fuel Tank: | 400 |

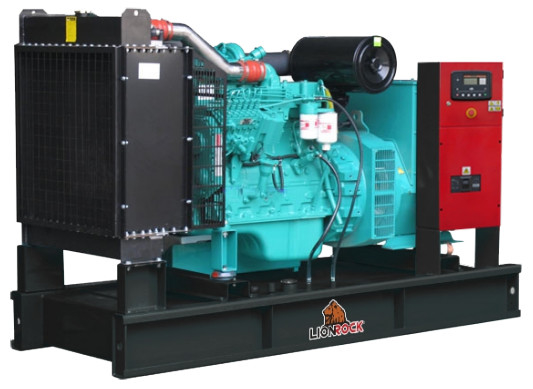

Portable Silent Diesel Generator AC Cummins 50Hz Diesel Generating Sets
Standard features
- Set mount radiator with engine driven fan
- Cooling system standard for 40°C ambient
- Anti-vibration mounts between engine / alternator and baseframe
- Baseframe fuel tank
- Protective grille for fan and rotating parts
- Exhaust bellow and industrial silencer
- 24VDC starter motor and battery
- Generator sets are CE Certified
- Standard 3P manual output breaker
- Coolant and oil drains with valve
- Each LionRock® generating set will go through factory test at 0%, 25%, 50%, 75%, 100% and 110% of rated capacity
Standard and Quality
- All generator sets comply with international standards including ISO8528, ISO3046, IEC60034, BS5000
- Manufacturing standard certified to ISO9001, ISO14001, ISO18001
Rating definition as per ISO8528
- Prime - Output available with varying load for an unlimited time. Average power output is 70% of the prime power rating. Typical peak demand is 100% of prime rated kWe with 10% overload capability for emergency use for a maximum of 1 hour in 12.
- Standby - Output available with varying load during a normal power supply failure. Average power output is 80% of the standby power rating. Typical annual operating time less than 500hours. No overload is available.
| Power Ratings at 0.8 power factor | |||||
|
Voltage(V)
|
Standby
|
Prime
|
Maximum current(Amp)
|
||
|
kVA
|
kW
|
kVA
|
kW
|
||
|
380/220
|
165 |
132
|
150 | 120 | 250 |
|
400/230
|
165 |
132
|
150 | 120 | 238 |
|
415/240
|
165 |
132
|
150 | 120 | 229 |
|
Fuel Consumption
|
||||
|
Load (%)
|
Standby
|
100 | 75 | 50 |
|
(L/h)
|
35.9 | 32.6 | 24.7 | 17.5 |
|
Dimensions
|
Weight
|
Fuel Tank
|
||
|
Length (L)
|
Width (W)
|
Height (H)
|
Dry
|
Baseframe
|
|
mm
|
mm
|
mm
|
kg |
litres
|
| 2300 | 1100 | 1650 | 1350 | 400 |
|
Length (L): mm
|
3100 |
|
Width (W): mm
|
1150 |
|
Height (H): mm
|
1900 |
|
Weight: kg
|
1750 |
|
Fuel Tank Capacity: litres
|
400 |
|
75% Load
|
50Hz
|
|
Prime: dBA@1m
|
85 |
|
dBA@7m
|
74 |
|
dBA@15m
|
68 |
