Name: Direct Connection To DC Bus Yanmar DC Generator Sets
Brand: LionRock
SKU: LRY16DH
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (170 reviews)
ISBN: 14555587

Detail Information

Length:	2250	Width:	900
Height:	2200	Weight:	1094
Fuel Tank Capacity:	1000	Rack Space:	39

Product Description

LionRock Generator sets are suitable for commercial, industrial, telecom, Data Centre and infrastructure application.

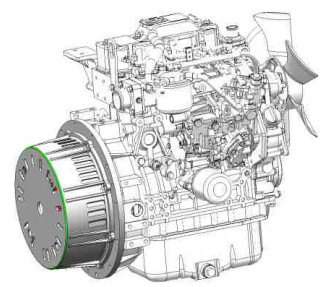

Direct Connection To DC Bus Yanmar DC Generator Sets 0

FEATURES

- Designed to work at 48V DC system with battery

- Microprocessor Controlled

- Variable Speed Design for best efficiency

- Rare Earth, Permanent Magnet Generator

- Direct Connection to DC Bus (No Transfer Switch)

- Temperature compensated battery charging

- Automatic three stages charging system consists of bulk, equalize and float charges

- Alternator efficiency over 92%

- Generator smart startup according to the battery voltage, capacity as well as remote start signal and mains failure

- Minimize engine wear and tear by avoiding light load operation through switching to battery supply

- Smart management of battery's output

- Maintenance free alternator without bearing

OPTIONS

- 1000 hours maintenance free system

- Water separator

- Sand trap options

- Jacket water heater

Output Ratings

Voltage

Prime

Standby

48Vdc

16kW

17.6kW

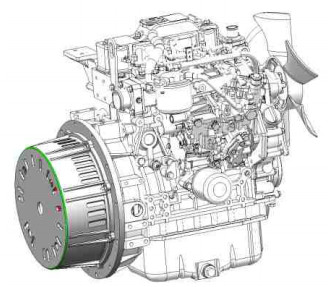

Direct Connection To DC Bus Yanmar DC Generator Sets 1

Length (L)	Width (W)	Height (H)
mm	mm	mm
807	729	950

Control System

The autostart generating set control panel offers a large number of monitoring and protection features within an extremely compact and user friendly package.

STANDARD FEATURES

Warning and Shutdown Alarms

- Low oil pressure

- High engine temperature

- Low / high fuel level

- High rectifier temperature

- Over / under load

- Over / under speed

- High / low gen voltage

- Start failure

- Emergency stop

- High / low battery voltage

- Over current

- High / low battery bank voltage

- Low battery bank capacity

- High battery bank temperature

Engine and Alternator Metering

- Generator phase voltage Vdc

- Generator current Adc

- Engine speed RPM

- Generator power kW

- Battery voltage Vdc

- Engine running hours counter h

- Engine temperature ^oC (^oF)

- Oil pressure BAR (PSI)

- Fuel level %

- Battery bank capacity AH

- Battery bank voltage Vdc

- Battery bank temperature ^oC (^oF)

- Battery bank current Adc

- Solar energy Kwh

- DG energy Kwh

OPTIONAL FUNCTION

- Operating temperature -40 to 70^oC

- Automatic temperature compensation

- Many sets of synchronous generator

- DC / DC start battery changer

- Double generator rotation operation

- Mains detection

- Battery management

- Solar management

Definitions

Prime Rating

These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power.

There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.

Standard Reference Conditions

Note: standard reference conditions 25°C (77°F) air inlet temp, 100m (328ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.

Soundproof Canopy

STANDARD SOUNDPROOF CANOPY

Sound Pressure Levels

Prime:100% Load
dBA@1m	85

Dimensions and Weights

Length (L): mm	1700
Width (W): mm	800
Height (H): mm	1280
Weight: kg	760
Fuel Tank Capacity: litres	45

ALL-IN-ONE SOUNDPROOF CANOPY

Sound Pressure Levels

Prime:100% Load
dBA@1m	85

Dimensions and Weights

Length (L): mm	2250
Width (W): mm	900
Height (H): mm	2200
Weight: kg	1094
Fuel Tank Capacity: litres	1000
Rack Space: U	39

Tag:

Place of Origin:	Dongguan China
Brand Name:	LionRock
Model Number:	LRY16DH

Minimum Order Quantity:	negotiate
Price:	negotiate
Packaging Details:	export packing
Delivery Time:	negotiate
Payment Terms:	TT
