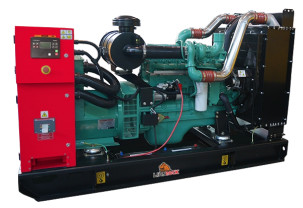

Anti Vibration 280 Kva Generator , 60hz Diesel Generator With 880L Fuel Tank

Basic Information
Place of Origin: Dongguan China
Brand Name: LionRock
Model Number: LRC280X
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: export packing
Delivery Time: negotiate
Payment Terms: TT
Detail Information
Frequency: 60Hz Length: 3500
Width: 1300 Height: 1900
Weight: 2500 Fuel Tank: 880
High Light:

Anti Vibration 280 Kva Generator

,

60hz 280 Kva Generator

,

880L 60hz Diesel Generator


Product Description

Baseframe Fuel Tank AC Cummins 60Hz Diesel Generating Sets



LionRock Generator sets are suitable for commercial, industrial, telecom, Data Centre and infrastructure application.



Standard features

- Set mount radiator with engine driven fan
- Cooling system standard for 40°C ambient
- Anti-vibration mounts between engine / alternator and baseframe
- Baseframe fuel tank
- Protective grille for fan and rotating parts
- Exhaust bellow and industrial silencer
- 24VDC starter motor and battery
- Generator sets are CE Certified
- Standard 3P manual output breaker
- Coolant and oil drains with valve
-
Each LionRock® generating set will go through factory test at 0%, 25%, 50%, 75%, 100% and 110% of rated capacity



Standard and Quality

- All generator sets comply with international standards including ISO8528, ISO3046, IEC60034, BS5000
- Manufacturing standard certified to ISO9001, ISO14001, ISO18001

- CE certificate for generator set



Rating definition as per ISO8528

- Prime - Output available with varying load for an unlimited time. Average power output is 70% of the prime power rating. Typical peak demand    is 100% of prime rated kWe with 10% overload capability for emergency use for a maximum of 1 hour in 12.
- Standby - Output available with varying load during a normal power supply failure. Average power output is 80% of the standby power rating.    Typical annual operating time less than 500hours. No overload is available.



Power                                                                                  Ratings at 0.8 power factor
Voltage(V)
Standby



Prime



Maximum current(Amp)
kVA
kW
kVA
kW
220/127
280
224
260 208 734
440/254
280
224
260 208 367
480/277
280
224
260 208 336



Fuel Consumption
Load (%)
Standby
100 75 50
(L/h)
65 59 43.2 29.4



Anti Vibration 280 Kva Generator , 60hz Diesel Generator With 880L Fuel Tank 0

Dimensions
Weight
Fuel Tank
Length (L)
Width (W)
Height (H)
Dry
Baseframe
mm
mm
mm
kg
litres
3500 1300 1900 2500 880



Control System

Technical data

Electrical measurement
- Voltage (P-P, P-N)
- Current
- Frequency
- Power factor

Energy Meter
- kW
- kWh
- kVA

Mechanical measurement
- Water temperature
- Oil Pressure
- Engine speed
- Running hours
- Number of start
- Battery voltage

Protection
Mechanical
- Overspeed
- High coolant temperature
- Low oil pressure
- Start up failure lock out
- Emergency Stop
Electrical
- Over and under frequency
- Over and under voltage
- Overload
- Overcurrent
- Power factor
- Current unbalance

Communication
- USB (Programming)

Control
- Auto/Manual
- Start/stop button
- Alarm/fault acknowledge
- Menu button
- Display navigation buttons

Features
- Automatic mains failure
- Fuel tank content in %
- Oil temperature gauge
- Modbus SNMP
- Modbus TCP/IP Ethernet
- Extended input/output modules
- RS485 Modbus

Alternative control modules
- Wide range of control module options including:
ComAp
Deepsea
Woodward
Smartgen etc.
- Multiple generators parallel as well as parallel with mains power

Soundproof Canopy

Anti Vibration 280 Kva Generator , 60hz Diesel Generator With 880L Fuel Tank 1
Dimensions and Weights
Length (L): mm
4760
Width (W): mm
1620
Height (H): mm
2230
Weight: kg
4235
Fuel Tank Capacity: litres
880



Sound Pressure Levels
75% Load
60Hz
Prime: dBA@1m
90
           dBA@7m
79
           dBA@15m
74



Stainless steel locks and handles on doors
- Black zinc die cast hinges on doors proven to withstand extreme weather conditions
- Zinc plated standard fastener with stainless steel option
- Enclosure made of sheet steel pre-treated with zinc phosphate prior to polyester powder coating

Secure, lockable doors prevent unauthorized access to control panel, fuel fill and battery
- Emergency stop buttons mounted on enclosure exterior surface
- All moving parts including Cooling fan, charging alternator, belt are fully guarded

Hinged doors of 180 deg swing on both sides of the enclosure for easy access and maintenance
- Lube oil and water drains hosed to baseframe side to exterior
- Removable end panels allow access to radiator, exhaust silencer and alternator rear
- Exhaust silencer inside enclosure

Easy Transportable
- Lifting points on both side of baseframe
- Anchor and drag points at baseframe ends
