| Place of Origin: | Dongguan China |
|---|---|
| Brand Name: | LionRock |
| Model Number: | LRC46X |
| Minimum Order Quantity: | negotiate |
| Price: | negotiate |
| Packaging Details: | export packing |
| Delivery Time: | negotiate |
| Payment Terms: | TT |
| Color: | Green | Length: | 1800 |
|---|---|---|---|
| Width: | 900 | Height: | 1400 |
| Dry: | 780 | Baseframe: | 100 |
| High Light: | 42 Kva Generator 24V,Diesel 42 Kva Generator,100L Diesel Generating Sets |
||

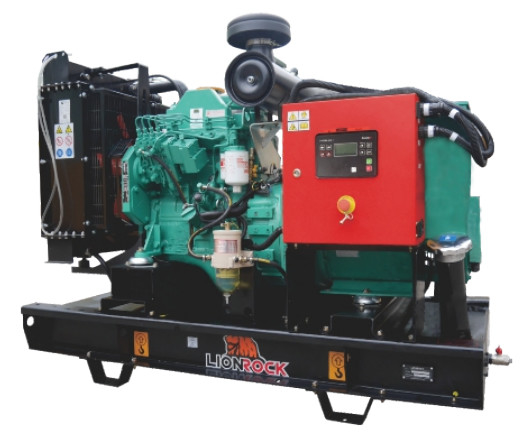

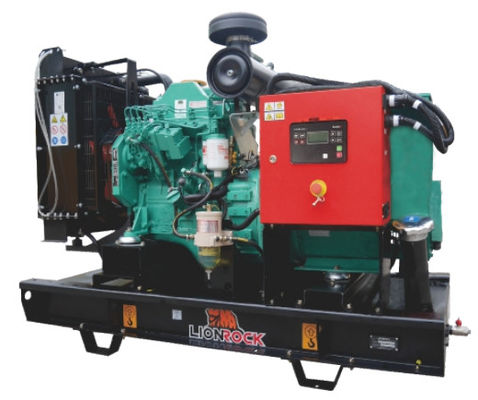

Output Available With Varying Load For An Unlimited Time AC Cummins 60Hz Diesel Generating Sets
LionRock Generator sets are suitable for commercial, industrial, telecom, Data Centre and infrastructure application.
Standard features
- Set mount radiator with engine driven fan
- Cooling system standard for 40°C ambient
- Anti-vibration mounts between engine / alternator and baseframe
- Baseframe fuel tank
- Protective grille for fan and rotating parts
- Exhaust bellow and industrial silencer
- 24VDC starter motor and battery
- Generator sets are CE Certified
- Standard 3P manual output breaker
- Coolant and oil drains with valve
- Each LionRock® generating set will go through factory test at 0%, 25%, 50%, 75%, 100% and 110% of rated capacity
Standard and Quality
- All generator sets comply with international standards including ISO8528, ISO3046, IEC60034, BS5000
- Manufacturing standard certified to ISO9001, ISO14001, ISO18001
- CE certificate for generator set
Rating definition as per ISO8528
- Prime - Output available with varying load for an unlimited time. Average power output is 70% of the prime power rating. Typical peak demand is 100% of prime rated kWe with 10% overload capability for emergency use for a maximum of 1 hour in 12.
- Standby - Output available with varying load during a normal power supply failure. Average power output is 80% of the standby power rating. Typical annual operating time less than 500hours. No overload is available.
| Power Ratings at 0.8 power factor | |||||
|
Voltage(V)
|
Standby
|
Prime
|
Maximum current(Amp)
|
||
|
kVA
|
kW
|
kVA
|
kW
|
||
|
220/127
|
46 |
36.8
|
42 | 33.6 | 120 |
|
440/254
|
46 |
36.8
|
42 | 33.6 | 60 |
|
480/277
|
46 |
36.8
|
42 | 33.6 | 55 |
|
Fuel Consumption
|
||||
|
Load (%)
|
Standby
|
100 | 75 | 50 |
|
(L/h)
|
11.5 | 10.5 | 8.3 | 6.1 |
|
Dimensions
|
Weight
|
Fuel Tank
|
||
|
Length (L)
|
Width (W)
|
Height (H)
|
Dry
|
Baseframe
|
|
mm
|
mm
|
mm
|
kg |
litres
|
| 1800 | 900 | 1400 | 780 | 100 |
|
Length (L): mm
|
2450 |
|
Width (W): mm
|
1000 |
|
Height (H): mm
|
1650 |
|
Weight: kg
|
1050 |
|
Fuel Tank Capacity: litres
|
100 |
|
75% Load
|
60Hz
|
|
Prime: dBA@1m
|
84 |
|
dBA@7m
|
72 |
|
dBA@15m
|
66 |
