Frequency: | 50Hz | Length: | 4850 |
---|---|---|---|
Width: | 2000 | Height: | 2450 |
Weight: | 8850 | Fuel Tank: | N/A |

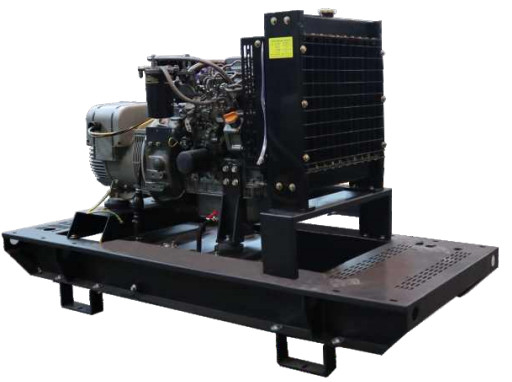

LionRock Generator sets are suitable for commercial, industrial, telecom, Data Centre and infrastructure application.
Standard features
- Set mount radiator with engine driven fan
- Cooling system standard for 40°C ambient
- Anti-vibration mounts between engine / alternator and baseframe
- Baseframe fuel tank
- Protective grille for fan and rotating parts
- Exhaust bellow and industrial silencer
- 12VDC starter motor and battery
- Generator sets are CE Certified
- Standard 3P manual output breaker
- Coolant and oil drains with valve
- Each LionRock® generating set will go through factory test at 0%, 25%, 50%, 75%, 100% and 110% of rated capacity
Standard and Quality
- All generator sets comply with international standards including ISO8528, ISO3046, IEC60034, BS5000
- Manufacturing standard certified to ISO9001, ISO14001, ISO18001
- CE certificate for generator set
Rating definition as per ISO8528
- Prime - Output available with varying load for an unlimited time. Average power output is 70% of the prime power rating. Typical peak demand is 100% of prime rated kWe with 10% overload capability for emergency use for a maximum of 1 hour in 12.
- Standby - Output available with varying load during a normal power supply failure. Average power output is 80% of the standby power rating. Typical annual operating time less than 500hours. No overload is available.
Power Ratings at 0.8 power factor | |||||
Voltage(V)
|
Standby
|
Prime
|
Maximum current(Amp)
|
||
kVA
|
kW
|
kVA
|
kW
|
||
380/220
|
6.0 |
4.8
|
5.5 | 4.4 | 9.0 |
400/230
|
6.0 |
4.8
|
5.5 | 4.4 | 8.5 |
415/240
|
6.0 |
4.8
|
5.5 | 4.4 | 8.5 |
Fuel Consumption
|
||||
Load (%)
|
Standby
|
100 | 75 | 50 |
(L/h)
|
1.9 | 1.7 | 1.3 | 0.88 |
Dimensions
|
Weight
|
Fuel Tank
|
||
Length (L)
|
Width (W)
|
Height (H)
|
Dry
|
Baseframe
|
mm
|
mm
|
mm
|
kg |
litres
|
1320 | 550 | 1050 | 320 | 45 |
Length (L): mm
|
1800
|
Width (W): mm
|
720 |
Height (H): mm
|
1100 |
Weight: kg
|
452 |
Fuel Tank Capacity: litres
|
45 |
75% Load
|
50Hz
|
Prime: dBA@1m
|
75 |
dBA@7m
|
65 |
dBA@15m
|
59 |
