Frequency: | 50Hz | Length: | 2500 |
---|---|---|---|
Width: | 1100 | Height: | 1550 |
Weight: | 1580 | Fuel Tank: | 350 |
High Light: | 150kVA 120kW Diesel Generator,OEM 120kW Diesel Generator,ISO8528 Perkins Diesel Generator |

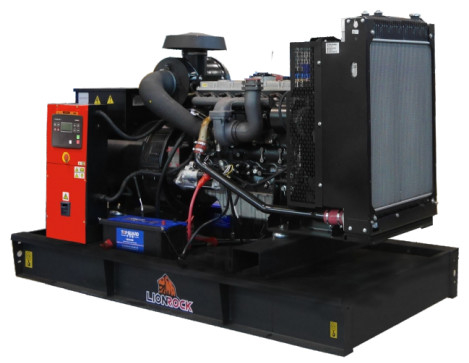

Protective Grille For Fan And Rotating Parts AC Perkins 50Hz Diesel Generating Sets
LionRock Generator sets are suitable for commercial, industrial, telecom, Data Centre and infrastructure application.
Standard features
- Set mount radiator with engine driven fan
- Cooling system standard for 40°C ambient
- Anti-vibration mounts between engine / alternator and baseframe
- Baseframe fuel tank
- Protective grille for fan and rotating parts
- Exhaust bellow and industrial silencer
- 12VDC starter motor and battery
- Generator sets are CE Certified
- Standard 3P manual output breaker
- Coolant and oil drains with valve
- Each LionRock® generating set will go through factory test at 0%, 25%, 50%, 75%, 100% and 110% of rated capacity
Standard and Quality
- All generator sets comply with international standards including ISO8528, ISO3046, IEC60034, BS5000
- Manufacturing standard certified to ISO9001, ISO14001, ISO18001
- CE certificate for generator set
Rating definition as per ISO8528
- Prime - Output available with varying load for an unlimited time. Average power output is 70% of the prime power rating. Typical peak demand is 100% of prime rated kWe with 10% overload capability for emergency use for a maximum of 1 hour in 12.
- Standby - Output available with varying load during a normal power supply failure. Average power output is 80% of the standby power rating. Typical annual operating time less than 500hours. No overload is available.
Power Ratings at 0.8 power factor | |||||
Voltage(V)
|
Standby
|
Prime
|
Maximum current(Amp)
|
||
kVA
|
kW
|
kVA
|
kW
|
||
380/220
|
150 |
120
|
135 | 108 | 228 |
400/230
|
150 |
120
|
135 | 108 | 216 |
415/240
|
150 |
120
|
135 | 108 | 209 |
Fuel Consumption
|
||||
Load (%)
|
Standby
|
100 | 75 | 50 |
(L/h)
|
32.5 | 28.8 | 21.9 | 15.7 |
Dimensions
|
Weight
|
Fuel Tank
|
||
Length (L)
|
Width (W)
|
Height (H)
|
Dry
|
Baseframe
|
mm
|
mm
|
mm
|
kg |
litres
|
2500 | 1100 | 1550 | 1580 | 350 |
Length (L): mm
|
3520 |
Width (W): mm
|
1120 |
Height (H): mm
|
1900 |
Weight: kg
|
2025 |
Fuel Tank Capacity: litres
|
350 |
75% Load
|
50Hz
|
Prime: dBA@1m
|
83 |
dBA@7m
|
72 |
dBA@15m
|
66 |
