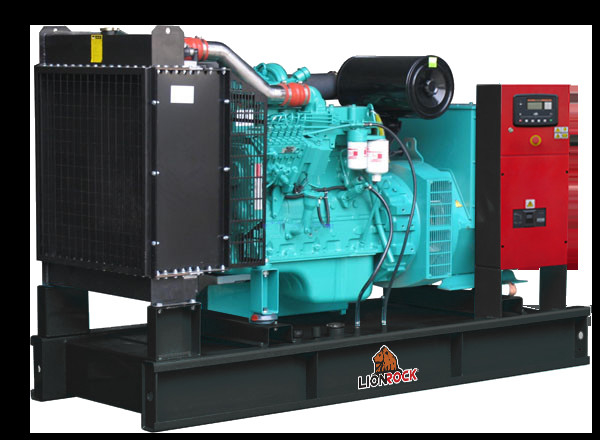

50Hz 140kVA Diesel Generator Sets 112kW 2300×1100×1550mm Size

Coolant And Oil Drains With Valve AC Cummins 50Hz Diesel Generating Sets

LionRock Generator sets are suitable for commercial, industrial, telecom, Data Centre and infrastructure application.

Standard features

- Set mount radiator with engine driven fan
- Cooling system standard for 40°C ambient
- Anti-vibration mounts between engine / alternator and baseframe
- Baseframe fuel tank
- Protective grille for fan and rotating parts
- Exhaust bellow and industrial silencer
- 24VDC starter motor and battery
- Generator sets are CE Certified
- Standard 3P manual output breaker
- Coolant and oil drains with valve
- Each LionRock® generating set will go through factory test at 0%, 25%, 50%, 75%, 100% and 110% of rated capacity

Standard and Quality

- All generator sets comply with international standards including ISO8528, ISO3046, IEC60034, BS5000
- Manufacturing standard certified to ISO9001, ISO14001, ISO18001

Rating definition as per ISO8528

- Prime - Output available with varying load for an unlimited time. Average power output is 70% of the prime power rating. Typical peak demand    is 100% of prime rated kWe with 10% overload capability for emergency use for a maximum of 1 hour in 12.
- Standby - Output available with varying load during a normal power supply failure. Average power output is 80% of the standby power rating.    Typical annual operating time less than 500hours. No overload is available.

Features

- Automatic mains failure

- Fuel tank content in %

- Oil temperature gauge

- Modbus SNMP

- Modbus TCP/IP Ethernet

- Extended input/output modules

- RS485 Modbus



Alternative control modules

- Wide range of control module options including:

ComAp

Deepsea

Woodward

Smartgen etc.

- Multiple generators parallel as well as parallel with mains power



Soundproof Canopy



Dimensions and Weights

Length (L): mm	3100
Width (W): mm	1150
Height (H): mm	1900
Weight: kg	1700
Fuel Tank Capacity: litres	400



Sound Pressure Levels

75% Load	50Hz
Prime: dBA@1m	84
dBA@7m	73
dBA@15m	67



Stainless steel locks and handles on doors

- Black zinc die cast hinges on doors proven to withstand extreme weather conditions

- Zinc plated standard fastener with stainless steel option

- Enclosure made of sheet steel pre-treated with zinc phosphate prior to polyester powder coating



Secure, lockable doors prevent unauthorized access to control panel, fuel fill and battery

- Emergency stop buttons mounted on enclosure exterior surface

- All moving parts including Cooling fan, charging alternator, belt are fully guarded



Hinged doors of 180 deg swing on both sides of the enclosure for easy access and maintenance

- Lube oil and water drains hosed to baseframe side to exterior

- Removable end panels allow access to radiator, exhaust silencer and alternator rear

- Exhaust silencer inside enclosure



Easy Transportable

- Lifting points on both side of baseframe

- Anchor and drag points at baseframe ends
