CE Certificate 1000kW Diesel Generator Sets 50Hz Frequency

Basic Information
Place of Origin: Dongguan China
Brand Name: LionRock
Model Number: LRYC1000
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: export packing
Delivery Time: negotiate
Payment Terms: TT
Detail Information
Frequency: 50Hz Length: 4650
Width: 1800 Height: 2300
Weight: 7600 Fuel Tank: N/A
High Light:

CE 750 KVA DG Set

,

600 KW 750 KVA DG Set

,

750KVA Generator 600 KW


Product Description

CE Certificate AC YUCHAI 50Hz Diesel Generating Sets

LionRock Generator sets are suitable for commercial, industrial, telecom, Data Centre and infrastructure application.



Standard features

- Set mount radiator with engine driven fan
- Cooling system standard for 40°C ambient
- Anti-vibration mounts between engine / alternator and baseframe
- Baseframe fuel tank
- Protective grille for fan and rotating parts
- Exhaust bellow and industrial silencer
- 12/24VDC starter motor and battery
- Generator sets are CE Certified
- Standard 3P manual output breaker
- Coolant and oil drains with valve
- Each LionRock generating set will go through comprehensive factory test including full load test to 110%



Standard and Quality

- All generator sets comply with international standards including ISO8528, ISO3046, IEC60034, BS5000
- Manufacturing standard certified to ISO9001, ISO14001, ISO18001



Rating definition as per ISO8528

- Prime - Output available with varying load for an unlimited time. Average power output is 70% of the prime power rating. Typical peak demand    is 100% of prime rated kWe with 10% overload capability for emergency use for a maximum of 1 hour in 12.
- Standby - Output available with varying load during a normal power supply failure. Average power output is 80% of the standby power rating.    Typical annual operating time less than 500hours. No overload is available.



Power                                                                                  Ratings at 0.8 power factor
Voltage(V)
Standby



Prime



Maximum current(Amp)
kVA
kW
kVA
kW
380/220
1000
800
910 728 1519
400/230
1000 800 910 728 1443
415/240
1000
800
910 728 1391



Fuel Consumption
Load (%)
Standby
100 75 50
(L/h)
225 202 155 111

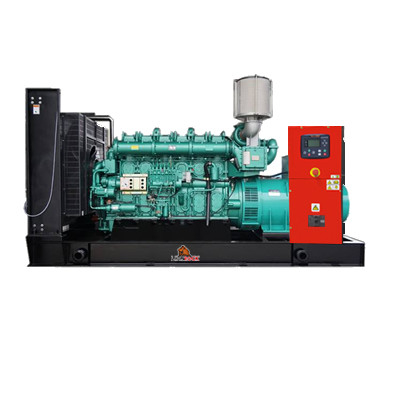

CE Certificate 1000kW Diesel Generator Sets 50Hz Frequency 0

Dimensions
Weight
Fuel Tank
Length (L)
Width (W)
Height (H)
Dry
Baseframe
mm
mm
mm
kg
litres
4650 1800 2300 7600 N/A



Technical data

Mechanical measurement
- Water temperature
- Oil Pressure
- Engine speed
- Running hours
- Number of start
- Battery voltage

Electrical measurement
- Voltage (P-P, P-N)
- Current
- Frequency
- Power factor

Communication
- USB (Programming)

Energy Meter
- kW/kWh/kVA

Protection
- Overspeed
- High coolant temperature
- Low oil pressure
- Start up failure lock out
- Emergency Stop
- Over and under frequency
- Over and under voltage
- Overload
- Overcurrent

Control
- Auto/Manual
- Start/stop button
- Alarm/fault acknowledge
- Menu button
- Display navigation buttons

Protection
- Overspeed
- High coolant temperature
- Low oil pressure
- Start up failure lock out
- Emergency Stop
- Over and under frequency
- Over and under voltage
- Overload
- Overcurrent

Control
- Auto/Manual
- Start/stop button
- Alarm/fault acknowledge
- Menu button
- Display navigation buttons

Features
- Automatic mains failure
- Fuel tank content in %
- Oil temperature gauge
- Modbus SNMP
- Modbus TCP/IP Ethernet
- Extended input/output modules
- RS485 Modbus

Alternative control modules
- Wide range of control module options including:
ComAp
Deepsea
Woodward
Smartgen etc.
- Multiple generators parallel as well as parallel with mains power

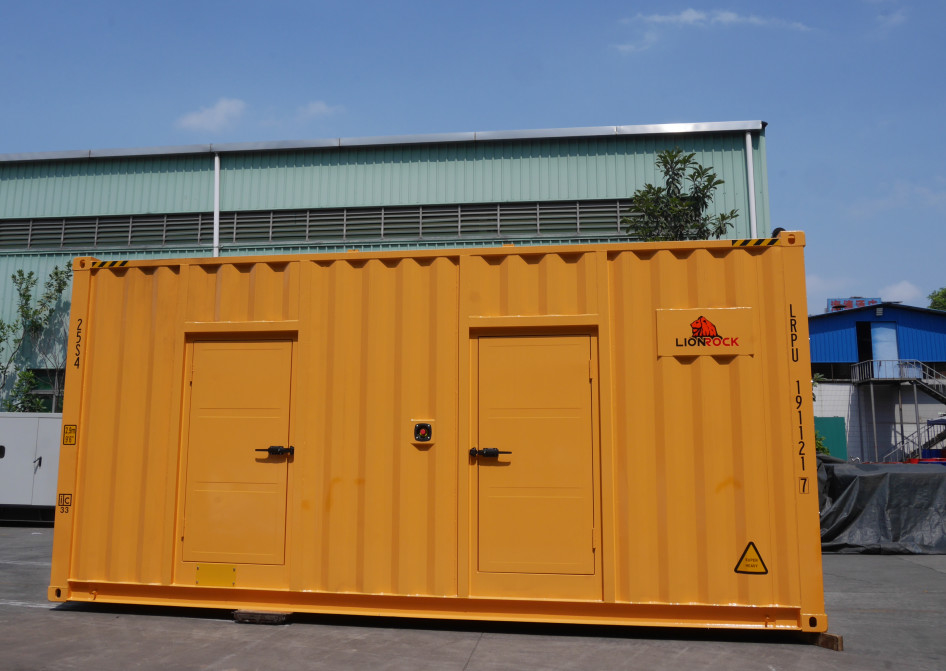

Soundproof Canopy

CE Certificate 1000kW Diesel Generator Sets 50Hz Frequency 1
Dimensions and Weights
Length (L): mm
6058
Width (W): mm
2438
Height (H): mm
2591
Weight: kg
11000
Fuel Tank Capacity: litres
N/A



Sound Pressure Levels
75% Load
50Hz
Prime: dBA@1m
90
           dBA@7m
81
           dBA@15m
75



Stainless steel locks and handles on doors
- Black zinc die cast hinges on doors proven to withstand extreme weather conditions
- Zinc plated standard fastener with stainless steel option
- Enclosure made of sheet steel pre-treated with zinc phosphate prior to polyester powder coating

Secure, lockable doors prevent unauthorized access to control panel, fuel fill and battery
- Emergency stop buttons mounted on enclosure exterior surface
- All moving parts including Cooling fan, charging alternator, belt are fully guarded

Hinged doors of 180 deg swing on both sides of the enclosure for easy access and maintenance
- Lube oil and water drains hosed to baseframe side to exterior
- Removable end panels allow access to radiator, exhaust silencer and alternator rear
- Exhaust silencer inside enclosure

Easy Transportable
- Lifting points on both side of baseframe
- Anchor and drag points at baseframe ends
