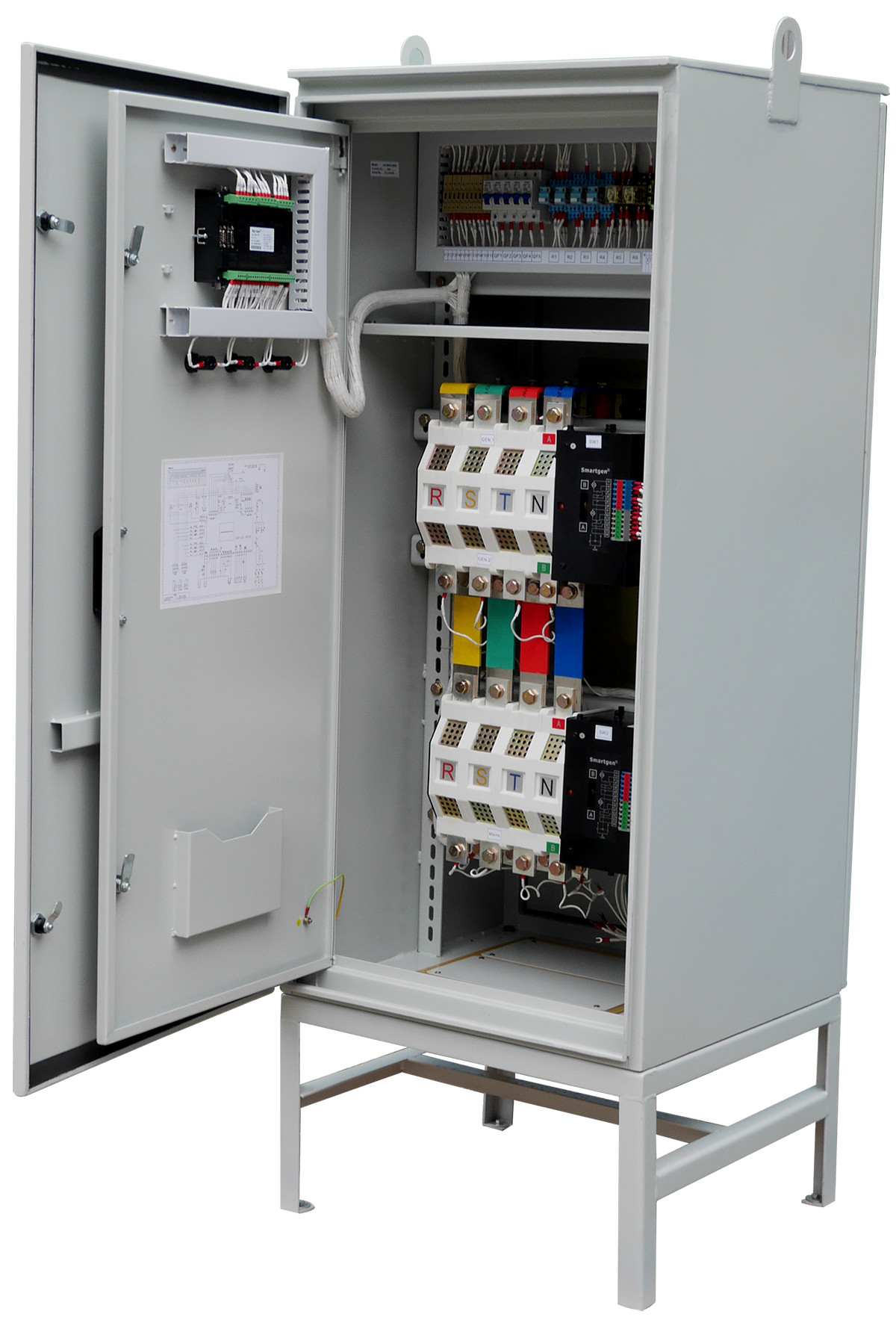

3T600 Diesel Generator Parts , 4P Pole Generator Automatic Transfer Switch ODM

Basic Information
Place of Origin: Dongguan China
Brand Name: LionRock
Model Number: ATS - STI MGG40-O ~ STI MGG3200-O
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: export packing
Delivery Time: negotiate
Payment Terms: TT
Detail Information
Color: Grey Pole: 4P
Current: 40-3200 Length: 700-1200
Width: 650-1075 Height: 1800-2300
High Light:

3T600 Diesel Generator Parts

,

ODM Diesel Generator Parts

,

Diesel Generator Automatic Transfer Switch


Product Description

ATS - Socomec automation transfer switch

Features

- Superior Serviceability & Simple Maintenance.
- Stable transfer time, high accuracy, high reliablity for power supply, Easy to install and operate, Smart appearance long operation life.
- Socomec automation transfer switch.
- 3T600 Controller
- PLC controller (MGG type ATS only)
- Outdoor type with IP54 design
- Two doors design (inner and outer), highly corrasion resistant construction.

Mains - Generator - Generator Transfer Operation
It's suitable for M+G+G system. If the mains failed, the first transfer switch will send a starting signal to the primary standby Genset and switch load. When the primary standby Genset is disablde, the transfer switch will send a starting signal to the second standby Genset and switch load. The primary standby Genset can achieve the transfer work.

Optional Feature (please contact us for more information)
- Bypass function
- Manual transfer switch
- SPD
- ACDB
- Current measurement

Mechanical Specifications
- Thickness: 1.5mm
- Fixed Type: Floor

Mechanical Specifications
ATS Type Pole Current (A) Length (mm) Width (mm) Height ( mm) Wet (kg)
STI MGG40-O 4P 40 700 650 1800 145
STI MGG63-O 4P 63 700 650 1800 145
STI MGG80-O 4P 80 700 650 1800 156
STI MGG100-O 4P 100 700 650 1800 156
STI MGG125-O 4P 125 700 650 2000 178
STI MGG160-O 4P 160 700 745 2000 178
STI MGG200-O 4P 200 700 745 2000 178
STI MGG250-O 4P 250 700 745 2000 210
STI MGG315-O 4P 315 700 745 2000 230
STI MGG400-O 4P 400 700 745 2000 230
STI MGG500-O 4P 500 700 745 2000 370
STI MGG630-O 4P 630 700 825 2000 370
STI MGG800-O 4P 800 1200 1000 2300 430
STI MGG1000-O 4P 1000 1200 1000 2300 430
STI MGG1250-O 4P 1250 1200 1000 2300 430
STI MGG1600-O 4P 1600 1200 1075 2300 500
STI MGG2000-O 4P 2000 1200 1075 2300 530
STI M GG2500-O 4P 2500 1200 1075 2300 530
STI M GG3200-O 4P 3200 1200 1075 2300 530

                                                                                Parameters are only for reference. Please contact us for further information.



3T600 Controller

- Backlit 128 x 64 LCD, optional Chinese and English display, push-button operation.
- Measure and display voltage and frequency; Parameters including active power, apparent power, power factor as well as three-phase current    are optional.
- Over/under voltage, loss of phase, reverse phase sequence, over/under frequency protection.
- All parameters can be set on site. With Two different passwords which ensures authorized staff operation only.
- ATS Controller has function of automatic Re-closing.
- Event log can record 99 items circularly.
