| Place of Origin: | Dongguan China |
|---|---|
| Brand Name: | LionRock |
| Model Number: | 6-FMX-170 |
| Minimum Order Quantity: | negotiate |
| Price: | negotiate |
| Packaging Details: | export packing |
| Delivery Time: | negotiate |
| Payment Terms: | TT |
| Nominal Voltage: | 12 V | Capacity: | 170 Ah @ 10hr To 1.80 V Per Cell @ 25˚C (77˚F) |
|---|---|---|---|
| Weight: | 54 Kg (119.05 Ibs) | Length: | 559 Mm (22.01 In) |
| Width: | 125 Mm (4.92 In) | Height: | 315 Mm (12.40 In) |
| High Light: | 170 Ah VRLA 12v Battery,ABS VRLA 12v Battery |
||

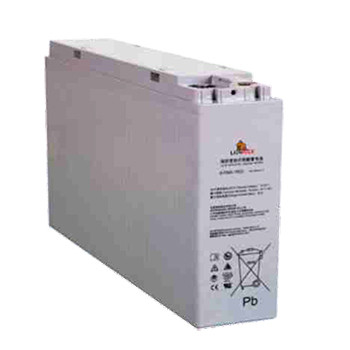

Save Floor Space 6-FMX Series VRLA Battery
Benefits
- Front terminal design, easy access for faster installation and maintenance
- Optimal energy density, save floor space
- No leakage and no acid smog spray during the operation
Main Applications
- Telecom site
- Outdoor base station
- Floating operation site
- UPS
Technical Features
- Excellent capacity retention rate
- Long life float service design
- Excellent over discharge recovery capability
Certification
- ISO 9001:2008
- ISO 14001:2004
- GB/T 28001-2011
- UL
- CE
Technical Parameters
| Nominal Voltage | 12 V |
| Capacity | 170 Ah @ 10hr to 1.80 V per cell @ 25˚C (77˚F) |
| Weight | 54 kg (119.05 Ibs) |
| Dimensions | Length: 559 mm (22.01 in) Width: 125 mm (4.92 in) Height: 315 mm (12.40 in) |
| Internal Resistance (full charged) | 3.7mΩ |
| Short - circuit Current | 2607 A |
| Self Discharge @25˚C (77˚F) | Less than 4% after 30 days storage |
| Operating Temperature Range | Discharge: -40˚C～50˚C (-40˚F～122˚F) Charge: -20˚C～45˚C (-4˚F～113˚F) Storage: -20˚C～40˚C (-4˚F～104˚F) |
| Recommended Operating Temperature | 15˚C～25˚C (59˚F～77˚F) |
| Recommended Charging Current | 34 A |
| Charging Voltage @25˚C (77˚F) | Float: 2.23 V/cell Equalize: 2.35 V/cell |
| Terminal | M6 |
| Container Materials | ABS/ABS V0 (Optional) |
| Capacity Affected by Temperature (C10) | 103% @ 40˚C (104˚F) 85% @ 0˚C (32˚F) 60% @ -20˚C (-4˚F) |
| Design Life @25°C (77˚F) | 12 years |
